Uni-T UT311A Vibration Tester

Brand: UNI-T
Product Code: UT311A
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2026-05-29

311.10€
Ex Tax: 257.11€

Qty

Add to Wish List

Description Product Delivery

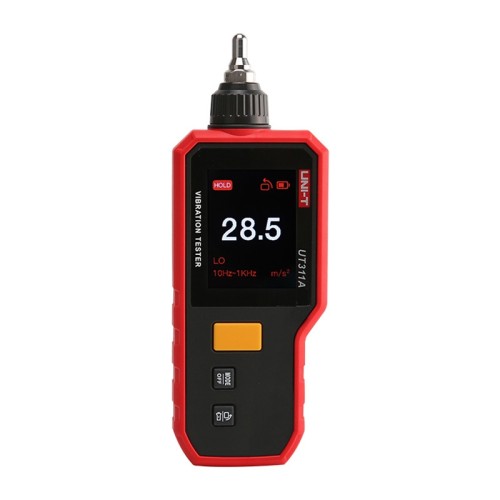

Uni-T UT311A Vibration Tester

The Uni-T UT311A Vibration Tester is a compact machine health monitoring device that measures vibration acceleration, velocity, and displacement with instant readings displayed on a 2.4" TFT screen. The device operates in two frequency modes for acceleration (LO: 10 Hz–1 kHz and HI: 1 kHz–15 kHz), allowing you to tailor the measurement to the nature of the equipment’s operation. Its compact design, auto-rotating screen, built-in flashlight, and USB-C rechargeable battery make the UT311A ideal for field inspections and routine diagnostics of industrial equipment.

Measurements tailored to various applications

The UT311A offers three key measurement methods: acceleration (PEAK), velocity (RMS), and displacement (P-P), allowing you to assess both dynamic vibrations and the overall operating condition of the machine. Separate frequency modes for acceleration (LO and HI) allow for more precise analysis of both slower and faster vibrations, rather than using a single generalized range. The Data Hold function allows the result to be frozen on the screen, making it easier to read in less convenient conditions.

Ease of Use and Portability

The device was designed for field use, which is why it features a clear TFT screen with automatic rotation and backlighting, improving the visibility of results regardless of orientation. The built-in flashlight aids in low-light conditions, and the automatic shut-off after 5 minutes reduces power consumption. The 1350 mAh battery provides up to approximately 12 hours of operation, and charging via USB-C takes about 3 hours. The weight of approximately 191 g includes the device with the short probe, i.e., in a ready-to-use configuration.

Included

Uni-T UT311A vibration tester
Long measurement probe
Short measurement probe
USB-C charging cable
User manual
Safety instructions

Manufacturer	Uni-T
Model	UT311A
Acceleration measurement	0.1–199.9 m/s²
Velocity measurement	0.1–199.9 mm/s
Displacement measurement	0.001–1.999 mm
Acceleration frequency range	LO 10 Hz–1 kHz / HI 1 kHz–15 kHz
Velocity frequency range	10 Hz–1.5 kHz
Displacement frequency range	10 Hz–1 kHz
Resolution	0.1 m/s² / 0.1 mm/s / 0.001 mm
Acceleration and velocity accuracy	±(5%+2 digits)
Displacement accuracy	±(10%+2 digits)
Display	2.4" TFT LCD, auto-rotation, backlight
Functions	Data Hold, flashlight, battery indicator, auto-off after 5 min
Power supply	1350 mAh Li-Ion battery, 3.7 V
Charging	USB-C, DC 5 V
Operating time	approx. 12 h
Operating conditions	0°C–40°C, ≤80% RH (non-condensing)
Dimensions	180 × 28 × 64 mm (with short probe)
Weight	191 g (with short probe)

Tags: uni-t, ut311a, vibration, tester
