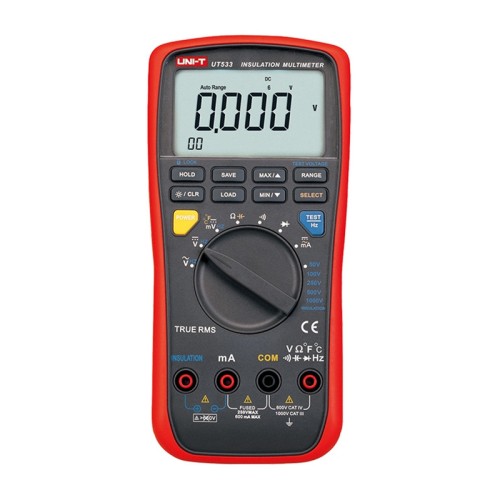

Uni-T UT533 Insulation Resistance Tester

The Uni-T UT533 Insulation Resistance Tester is a versatile 2-in-1 measuring device that combines the functions of a classic RMS digital multimeter with an insulation tester capable of test voltages up to 1000 V. It is suitable for industrial and laboratory work as well as for home installations, as it enables the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature, and additionally allows for precise monitoring of the insulation condition of wires and devices.

Wide range of measurements in a single device

The Uni-T UT533 is designed to replace several tools at once. This allows the user to quickly switch between voltage, current, and resistance measurements, reducing work time and increasing convenience. The RMS measurement function ensures accurate results even with distorted signals, which is important in modern electrical installations.

Insulation resistance measurement up to 1000V

The device offers the ability to test insulation in the range up to 2GΩ at a test voltage from 50 to 1000V. This allows for effective diagnosis of the condition of wires, motors, or electrical installations, detecting potential damage before it leads to a failure.

Clear display and convenient operation

A large, backlit screen with a resolution of 5999 ensures good visibility of results even in low light. The dual-display function allows two parameters to be read simultaneously, facilitating measurement analysis. Additional features, such as HOLD, MAX/MIN, and auto-off, enhance comfort and safety during operation.

Safety and robust construction

The UT533 model complies with CAT III 1000V and CAT IV 600V safety standards, allowing for safe use in demanding conditions. The double insulation of the housing and compliance with CE and RoHS certifications enhance the device’s reliability in daily use.

Included

Test leads
Batteries
Alligator clips
Type K temperature probe

Manufacturer	Uni-T
Model	UT533
Insulation resistance measurement	0.1MΩ – 2GΩ (±5%+5)
Test voltage	50V – 1000V
AC voltage	6V – 1000V (±2%+3)
DC voltage	6mV – 1000V (±0.3%+4)
AC current	60mA – 600mA (±1.5%+2)
DC current	60mA – 600mA (±1.0%+2)
Resistance	600Ω – 40MΩ (±1.5%+3)
Capacitance	10nF – 100µF (±3%+5)
Power supply	6 × 1.5V LR6 battery
Dimensions	96.7 × 202.8 × 46 mm
Weight	505 g

Tags: uni-t, ut533, insulation, resistance, tester
