Universal meter UNI-T UT139C

Brand: UNI-T
Product Code: UPM-02177
Availability: Temporarily Out Of Stock
52.20€
Ex Tax: 43.14€

Qty

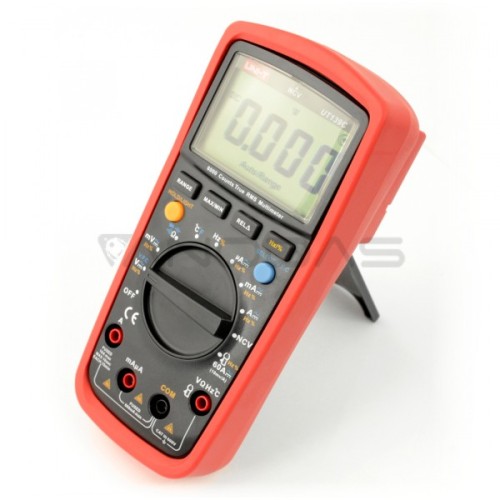

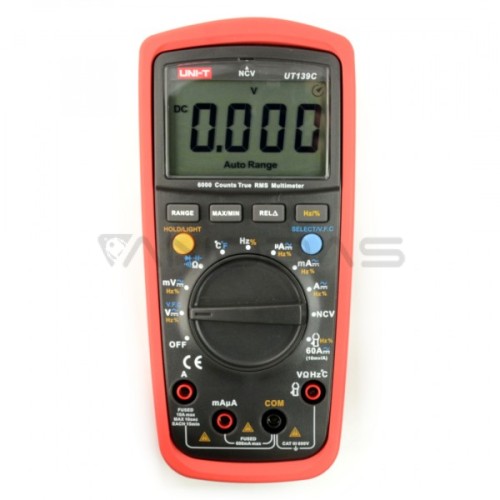

True RMS multimeter with automatic adjustment of the range, allows to measure the voltage of DC and AC up to 600 V, the voltage of the flow of DC and AC current to 10 A, resistance, capacitance and frequency. Temperature measurement in range from -40 ÷ 200 °C, allows attached probe. The continuity is indicated via acoustic signal. The device has the function of recording the last measurement and backlight. The meter is powered by two AA 1.5 V batteries, which are also in the set. Digital indicator informs about the level of discharge. Everything is sent in well- protected, original box.

Specifications:

  •     Voltage DC 600 mV / 6 V / 60 V / 600 V DC
  •     Alternating voltage 6 V / 60 V / 600 V
  •     Current DC 600 µA / 6 mA / 60 mA / 600 mA / 6 A / 10 A DC
  •     AC 600 µA / 6 mA / 60 mA / 600 mA / 6 A / 10 A AC
  •     Impedance 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
  •     Capacity: 9,999 nF / 99.99 nF / 999.9 nF / 99.99 µF / 999.9 µF / 9.999 mF / 99.99 mF
  •     Frequency from 10 Hz to 10 MHz
  •     Temperatures from -40 ° C to 1000 ° C
  •     Automatic range selection
  •     Sounder
  •     Diode Tester
  •     Data storage function
  •     Battery indicator
  •     Backlight
  •     LCD Display 1999 (58 x 36mm)
  •     Dimensions 180 x 87 x 47 mm
  •     Power supply 2 x 1.5V AA
  •     Weight: 370 g


Included:

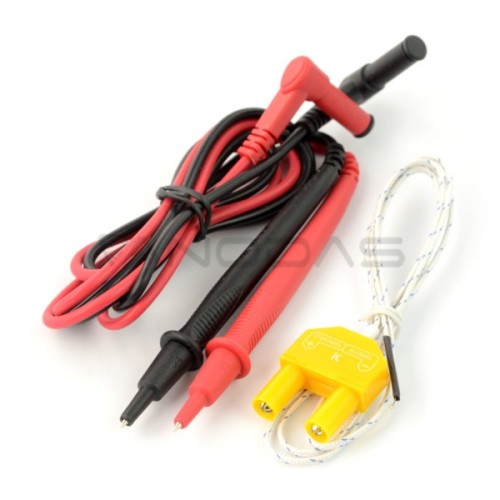

  •          Test leads
  •          Temperature probe
  •          Batteries: 2x AA 1.5V (fingers)
  •          instruction
  •          Warranty: 24 months
