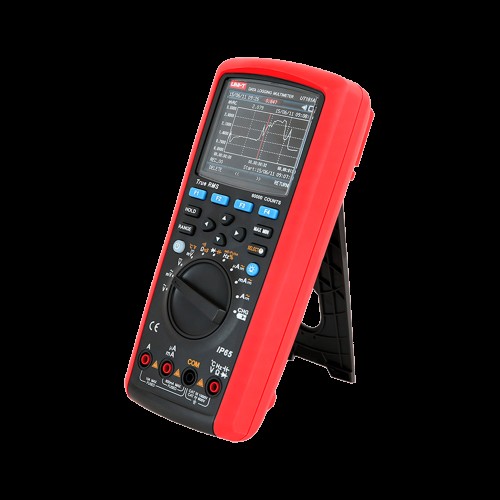

Universal multimeter Uni-t UT181A
Product Code: MIE0171
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-07-16
Ex Tax: 322.15€




- DC voltage: 60mV/600mV/6V/60V/600V/1000V ± (0.025%+5)
- AC Voltage: 60mV/600mV/6V/60V/600V/1000V ±(0.3%+30)
- Continuous current: 600 µA/6000 µA/60 mA/600 mA/10 A ± (0.08%+10)
- AC current: 600 µA/6000 µA/60 mA/600 mA/10 A ± (0.6%+20)
- Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.05% + 2)
- Conductivity: 60 nS ± (2%+10)
- Capacitance: 6 nF/60 nF/600 nF/6 µF/60 µF/600 µF/6 mF/60 mF ± (2%+5)
- Frequency: 60 Hz / 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 60 MHz ±(0.01%+5)
- Temperature: -40°C ~ 1000°C ±(1%+30), -40°F ~ 1832°F ±(1.5%+50)
- Fill factor: 10% ~ 90% ± (1.2%+30)
- Pulse width: 250 ms
- Diode test: about 3V
- Circuit Continuity Check
- Automatic/manual change of measurement ranges
- True RMS measurement
- AC + DC measurement
- Simultaneous temperature measurement with two probes
- Comparative measurements
- Low pass filter: 1 kHz (-3 dB)
- Freeze the last reading
- Voltage level measurement (dBV/dBm)
- Recording the highest value
- Relative measurement mode
- Measurement record: 20000
- Trends of change
- Recording MAX/MIN/AVG values
- Date/time display
- LCD backlight adjustment
- Analog column: 61 segments
- Warning about incorrectly selected test sockets
- Low battery indicator
- Automatic shutdown
- Maximum reading: 60,000
- Optical connection
- Input voltage measurement resistance: about 10 MOhm
- Power supply: 7.4V, 2000 mAh lithium-ion battery
- Screen size: 3.5 inch color TFT LCD
- Product dimensions: 103x225x59mm
- Product weight: 638.6g

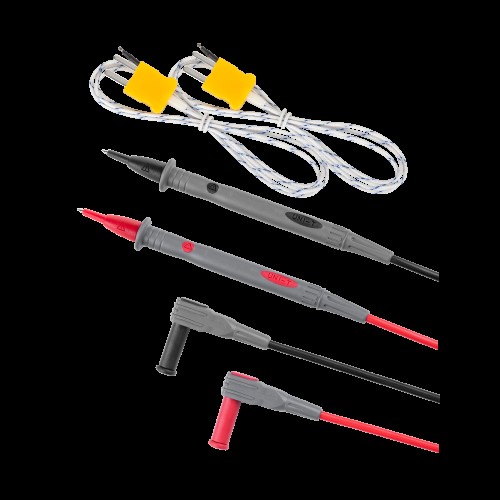

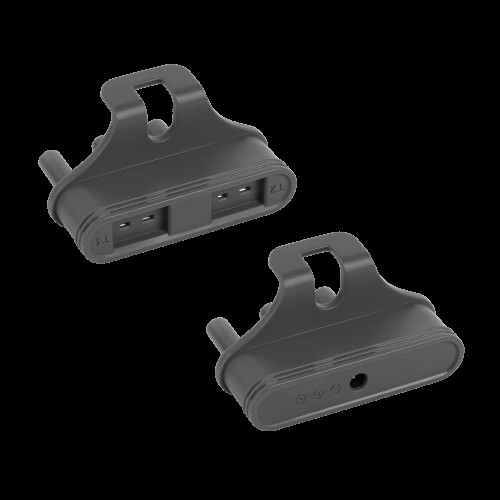

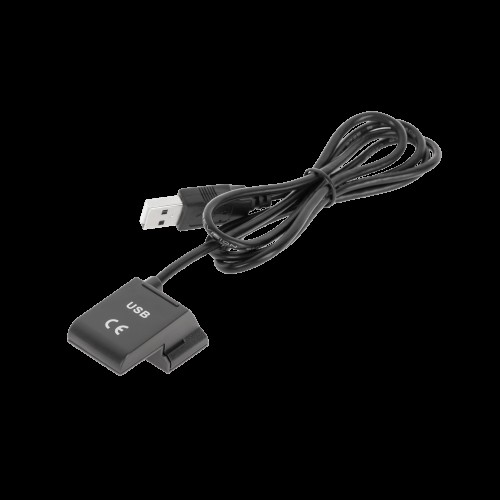

- Accessories: battery, test leads, USB cable, 2x temperature measuring probe, temperature measuring socket, charging socket, AC adapter, case
