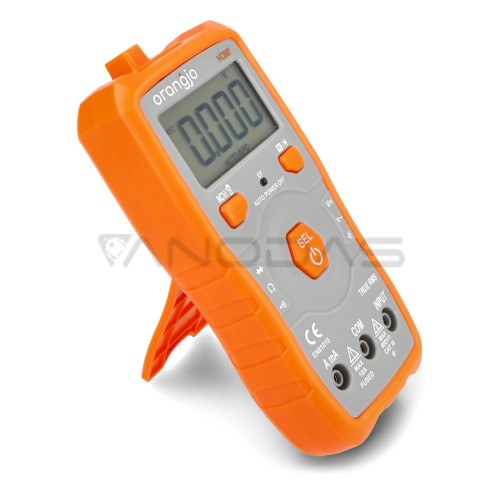

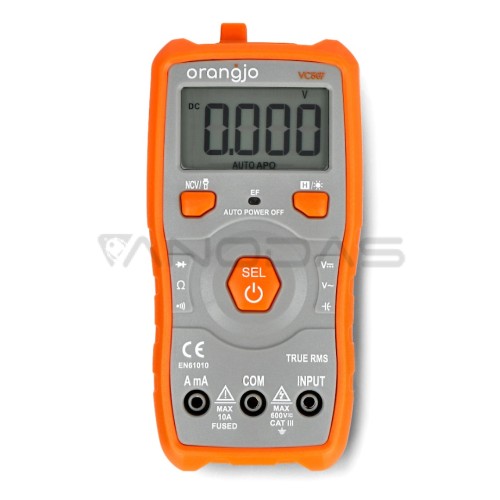

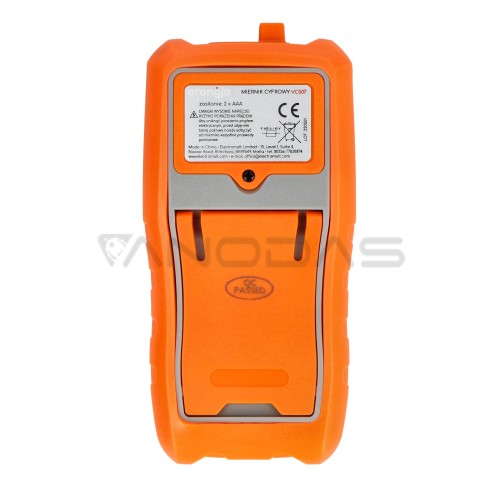

Universal multimeter with NCV - Orangjo VC507

Brand: Orangjo
Product Code: AN-22523
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-18

22.60€
Ex Tax: 18.68€

Qty

Add to Wish List

Orangjo's easy-to-use multimeter is designed for basic measurements. The device has the function of an automatic measurement range selection. The VC507 can measure DC voltage up to 600 V, AC voltage up to 600 V, DC current up to 10 A, AC current up to 10 A, resistance up to 60 MΩ, capacitor capacitance up to 10 mF and True RMS. In addition, the device has the function of testing diodes and circuit continuity. It is also equipped with a non-contact NCV voltage detector, flashlight function and buzzer. The results of measurements made by the meter are presented on a backlit LCD display. The device is powered by two AAA batteries included in the set and has a low battery indicator. The kit also includes test leads.

Main features:

Automatic measurement range selection
Measurement of DC voltage, AC voltage, DC current, AC current, resistance, capacitance and True RMS
Diode and continuity testing
Non-contact NCV voltage detector
Backlit LCD display
Flashlight
Buzzer
Auto power off (after 15 minutes of inactivity)
Overload protection
Powered by two AAA batteries included in the set
Low battery indicator
Easy-to-use

Specification:

Producer: Orangjo
Model: VC506
DC voltage measurement: 600mV / 6V / 60V / 600V
AC voltage measurement: 600 mV / 6 V / 60 V / 600 V
DC current measurement: 60 mA / 600 mA / 10 A
AC current measurement: 60 mA / 600 mA / 10 A
Resistance measurement: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 60 MΩ
Capacitance measurement: 60 nF / 600 nF / 6 μF / 60 μF / 10 mF
Sampling rate: 2 times per second
Display: LCD, backlit
Power: 2x AAA battery (included)
Terms of use:

temperature: from 0 °C to 40 °C
humidity < 80%

The storage conditions:

temperature: -10 °C to 50 °C
humidity: < 85%

Dimensions: 145 x 73 x 34 mm
Weight: 185 g

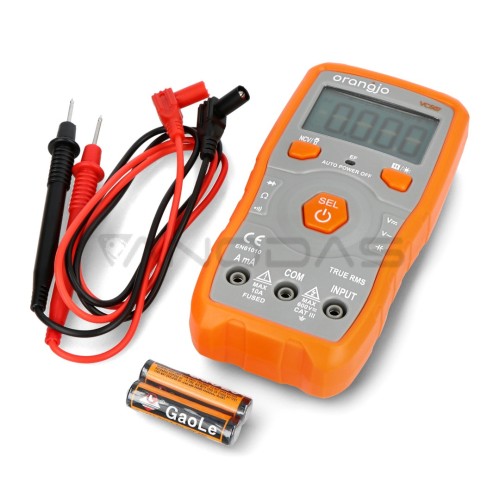

Set includes:

Universal meter with autorange and NCV - Orangjo VC507
2 x AAA battery
Test leads
User manual

Tags: universal, multimeter, with, ncv, orangjo, vc507
