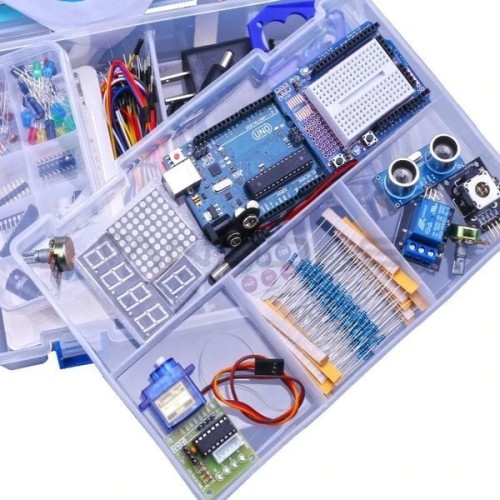

UNO XXL-1 Starter Kit - UNO R3 Starter Kit - Arduino Compatible

The practical UNO R3 starter kit is the perfect kit for a beginner electronics engineer to learn programming in ARDUINO. The set allows you to familiarize yourself with the basic electrical elements as well as the basics of microcontroller programming.

• The UNO R3 kit contains elements enabling the creation of simple electronic systems based on Arduino modules, which allow you to gain valuable knowledge and experience to create more complex projects in the future.
• It contains 77 pieces of popular electronic elements and modules, such as capacitor, transistor, diode, resistors, colorful LEDs, thanks to which we will learn the basic elements and capabilities of the microcontroller.
• Arduino is an ideal platform for learning programming because the software is a simplified C/C++ language and completely free.
• In addition, there is a lot of teaching material on the Internet in the form of free video courses on YouTube, many articles and many databases of ready-made projects.

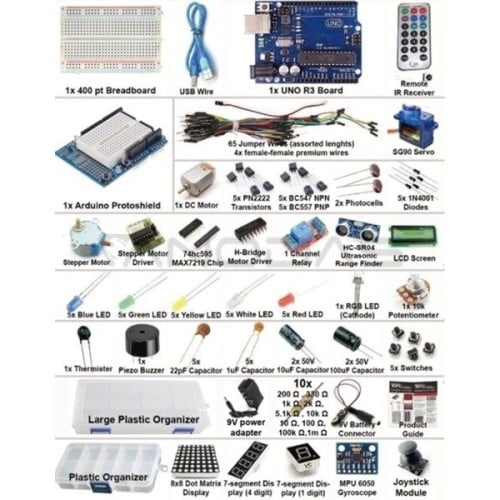

• UNO R3 - 1 pc.
• JOYSTICK MODULE - 1 pc.
• MOTOR DRIVER MODULE - 1 pc.
• 28BYJ-48 stepper motor with gear - 5V 0.3A 0.03Nm
• HC-SR04 Ultrasonic Range Finder - 1 pc.
• 9G SERVO - 1 pc.
• LED 5x RED 5x GREEN 5xYELLOW 5xBLUE 4XWHITE - 20 pcs. + 1 pc. RGB LED
• USB CABLE - 1 pc.
• REMOTE - 1 pc.
• PASSIVE BUZZER - 1 pc.
• RESISTANCE - 100 pcs.
• LCD 1602 - 1 pc.
• 1 channel module - 1 pc.
• 10K POTENTIOMETER - 1 pc.
• CAPACITORS 2X100uF + 2x10uF - 4 pcs.
• Zenner diode - 5 pcs.
• THERMISTOR 1K NTC - 1 pc.
• MR200-001 BREADBOARD - 1 pc.
• 1 DIGITAL TUBE - 1 pc.
• PHOTORESISTANCE - 2 pcs.
• IR RECEIVER SENSOR - 1 pc.
• JUMPER WIRE - 65 pcs.
• 4 DIGITAL TUBE - 1 pc.
• SWITCHES - 5 pcs.
• SHIFT: L293D, 74HC595N - 1 pc.
• 3-axis gyroscope, accelerometer MPU-6050 /GY-521, I2C - 1 pc.
• LED Display Driver IC MAX7219 - 1 pc.
• LED MATRIX 8x8 - red - 1 pc.
• FF CABLE 4 cable - 1 pc.
• 9V BATTERY WITH DC - 1 pc.
• CERAMIC CAPACITOR - 10 pcs.
• PN2222A x5, BC547 x5, BC557 x5 transistors - 15 pcs.
• ARDUINO PROTOSHIELD - 1 pc.
• 2.54mm Male Pin Header Connector 40 pin - 1 pc.
• Power Supply AC/DC ADAPTER 100 - 240V - 1 pc.

• Supply voltage: 7V to 12V

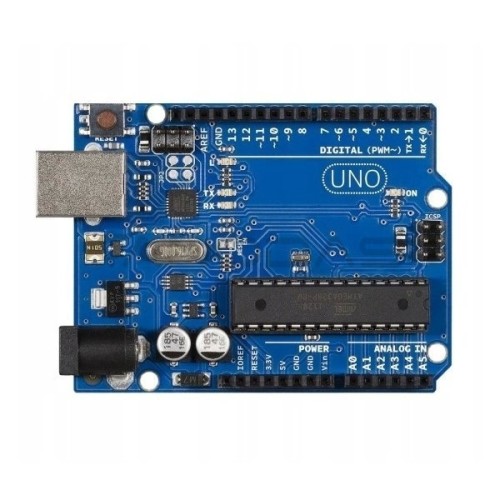

• Fully compatible with Arduino Uno Rev3
• Microcontroller: ATmega328 - operating voltage 5V
• Maximum clock frequency: 16MHz
• SRAM memory: 2 kB
• Flash memory: 32 kB (5 kB reserved for bootloader)
• EEPROM memory: 1 kB
• Number of IN-OUT inputs: 14, including 6 PWM
• Current capacity of a single pin is 40mA
• Number of analog inputs: 6 (A/D converter channels)
• Serial interfaces: UART, SPI, I2C
• External interrupts
• Connector: USB socket
• Soldered ISP connector
• Plate dimensions: 75 x 54 x 15 mm
• Pin spacing 2.54mm (can be mounted on breadboards)
• USB cable included
• The module is fully compatible with Arduino Uno R3. (this means that it can be programmed via the Arduino IDE using available libraries.)
• The module has:
  • ATmega328 microcontroller - the system is clocked with a clock signal with a frequency of 16MHz
  • 14 digital inputs/outputs
  • 6 PWM channels - e.g. to control servos/motors, e.g. SG-90
  • 6 analog inputs
  • Popular communication interfaces
  • USB connector on CH340
  • DC power socket
  • RESET button
  • Pins for connecting the AVR programmer.
• To run DFRduino, connect the system to the computer using a USB cable and select the Arduino Uno board in the Arduino IDE environment.
• The module is mostly compatible with shields intended for Duemilanowe and Diecimila
• By default, the BLINK LED 13 program and bootloader are loaded into the module - description http://majsterkowo.pl/od-go-zaczac-zabawe-z-arduino/

• USB chip driver - http://www.driverscape.com/download/usb-serial-ch341
• Software for Arduino - http://arduino.cc/en/Main/Software
• Eagle program files - http://dlnmh9ip6v2uc.cloudfront.net/datasheets/Dev/Arduino/Boards/RedBoard-v06.zip
• Software files for Arduino in English - https://www.arduino.cc/en/Main/Software
• Programming language documentation - https://www.arduino.cc/reference/en
• Full description of the Arduino UNO board - https://store.arduino.cc/arduino-uno-rev3
• Project pages:
  • https://create.arduino.cc/projecthub
  • https://howtomechatronics.com/arduino-projects/
  • https://circuitdigest.com/arduino-projects
  • https://www.hackster.io/arduino/projects?page=2
  • https://www.instructables.com/circuits/arduino/projects/
