VL53L3CX time-of-flight, distance and ambient light sensor I2C, 500cm, Pololu 3416

Brand: Pololu
Product Code: AN-19102
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
25.80€
Ex Tax: 21.32€

Qty

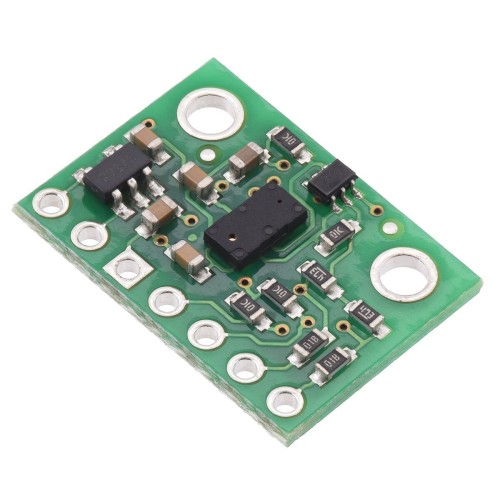

Digital sensor for time-of-flight distance and ambient light measurement. The measurement range is from 1 cm to 500 cm with a resolution of 1 mm. It uses I2C (TWi) bus to communicate, and is powered by 2.6 to 5.5 V. The module does not provide a direct distance measurement - it returns data in the form of a histogram, which can be processed using the algorithms provided by the ST language. The sensor is equipped with passive elements necessary for proper operation. Connectors are popular goldpin connectors that allow to connect the sensor with wires or directly plug it into the contact board.

Specification:
  • Supply voltage: 2.6 V to 5.5 V
  • Current consumption: 15 mA
  • Communication interface: I2C (TWI)
  • Interface address: 0x52
  • Minimum measurement range: 1 cm
  • Maximum measurement range: up to 500 cm
  • Resolution: 1 mm
  • Emitted wavelength: 940 nm
  • Viewing angle (FOV): 25°
  • Operating temperature range: -20 °C to 85 °C
  • Housing: lead-free LGA
  • Module dimensions: 13 x 18 x 2 mm
  • Weight: 0.5 g

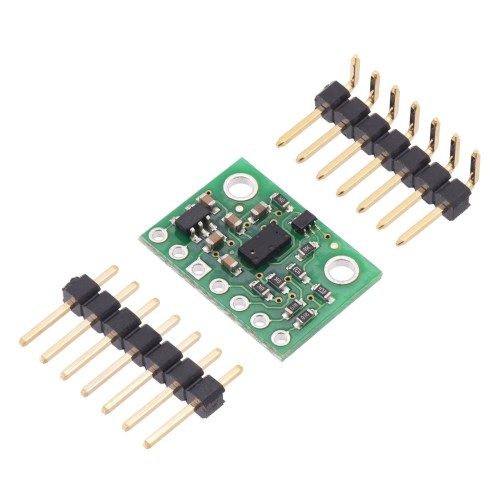

Set includes:
  • Ambient light and distance sensor
  • Straight goldpin socket 1x7 pin
  • Corner goldpin 1x7 pin
