VL53L4CD Time-of-Flight - Distance Sensor - 1-1300mm - I2C - Qwiic - SparkFun SEN-18993

Brand: Sparkfun
Product Code: AN-21117
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
32.60€
Ex Tax: 26.94€

Qty

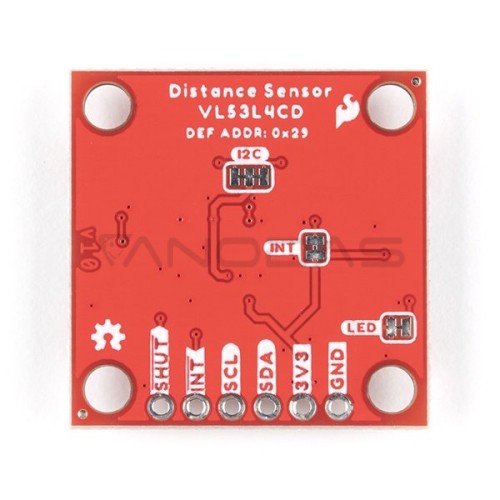

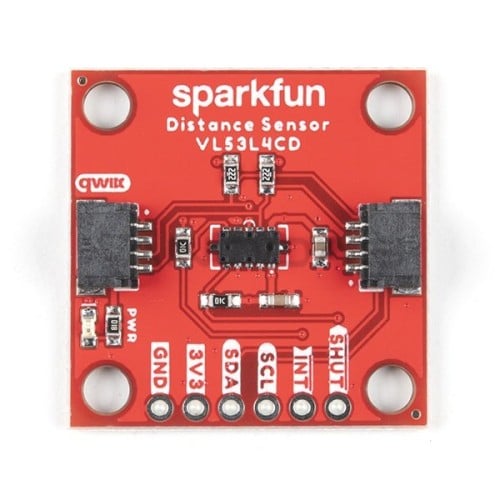

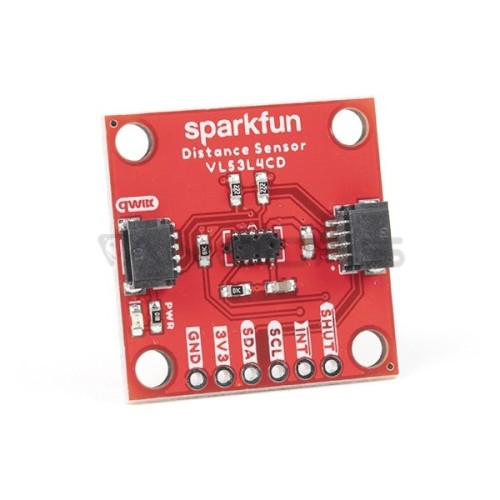

Module with distance sensor ToF (Time of Flight) VL53L4CD. It uses a VCSEL (Vertical Cavity Surface Emitting Laser) laser with a semiconductor diode, which allows you to measure the distance to the object in the range from 1 mm to 1300 mm with millimeter resolution. The product for communication uses the I2C bus. The Qwiic standard connectors on the board facilitate design (no soldering required) and also prevent the connection contrary to the polarity. The module supply voltage is from 2.6 V to 3.5 V.

Specification:
  • Supply voltage: 2.6 V to 3.5 V (3v3 by default via Qwiic connector)
  • Power consumption
  • Typical: 22 mA
    • Maximum: 24 mA
    • Peak consumption (including VCSEL): 40 mA
  • Measurement range: from 1 mm to 1300 mm
  • Resolution: +/- 1 mm
  • Light source: VCSEL 1940 nm class 1 laser
  • Field of view: 18°
  • Maximum reading speed: 100 Hz
  • 7-bit, unchanging I2C address: 0x29 (hardware-defined)
  • LED indicating power
  • LED jumper and pull-up resistor jumper (details in the user manual)
  • Working environment temperature: -30 °C to 85 °C
  • Dimensions: 25 x 25 mm
