VL53L4CD Time-of-Flight - Distance sensor - 1-1300mm - I2C - STEMMA QT/Qwiic - Adafruit 5396

Brand: Adafruit
Product Code: AN-21060
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-22
34.90€
Ex Tax: 28.84€

Qty

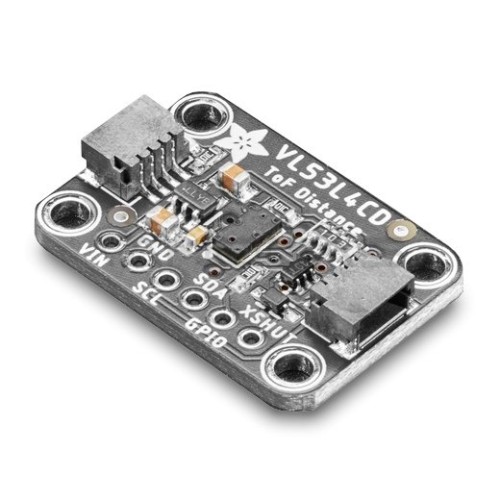

Efficient, digital distance sensor made in the Time of Flight technology. Equipped with the VL53L4CD system, it measures distances in the range from 1 mm to 1300 mm with precision at the level of LIDAR sensors. The module communicates via the I2C interface. It has STEMMA QT/Qwiic connectors and standard solder pads. Works with a voltage from 3 V to 5 V.

Specification:
  • Chip: VL53L4CD
  • Receiving circuit - SPAD (Single Photon Avalanche Diode) matrix with an integrated lens
  • Measurement technology: ToF - Time of Flight
  • Measuring range: from 1 mm to 1300 mm
  • Measurement resolution: up to 1 mm
  • Dead zone: none
  • The diagonal field of view: 18°
  • Measurement frequency: up to 100 Hz
  • Communication interface: I2C bus
  • Default I2C address: 0x29
  • Connectors: STEMMA QT / Qwiic / solder pads
  • Dimensions: 25.5 x 17.7 x 4.6 mm
  • Weight: 1.8 g
Set includes:

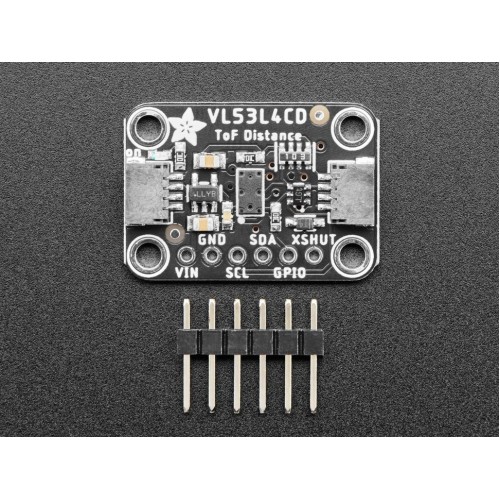

  • VL53L4CD Time-of-Flight - Distance Sensor - 1-1300mm - I2C - STEMMA QT/Qwiic - Adafruit 5396
  • 1x6 goldpin strip - 2.54 mm raster - for self-assembly
