Waveshare 10 DOF IMU Sensor Low Power 3.3V~5.5V DMP™

Product Code: AN-08298
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11

59.90€
Ex Tax: 49.50€

Qty

Add to Wish List

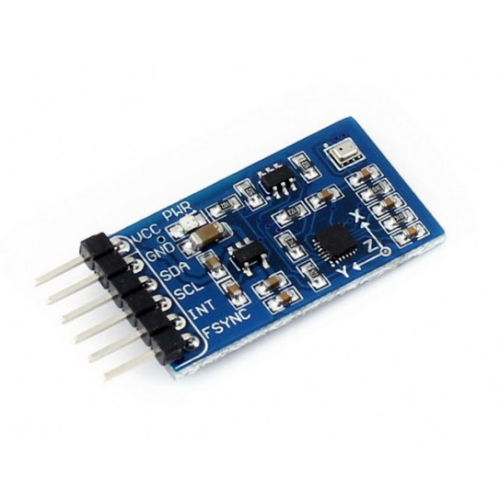

Waveshare 10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature.

MPU9250: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometerInternal

Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.

BMP280: barometric pressure sensor

Embedded temperature sensor for temperature compensation
Comparing with BMP180, it is lower power consumption, and higher performance

You can get the 10 DOF data through I2C interface

Specifications:

Power: 3.3V~5.5V (internal voltage regulation with low dropout)

Accelerometer:

Resolution: 16 bit
Measurement range (configurable): ±2, ±4, ±8, ±16g
Operating current: 450uA
GyroscopeResolution: 16 bit
Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
Operating current: 3.2mA

Compass/Magnetometer:

Resolution: 14bit
Measurement range: ±4800µT
Operating current: 280uA

Barometric pressure sensor:

Barometric resolution: 0.0016hPa
Temperature resolution: 0.01°C
Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
Operating current (1Hz update rate, ultra-low power mode): 2.8uA

Documents:

WIKI
