Waveshare Raspberry Pi Hat Screen - LCD TFT 1.44''

Product Code: WSR-10753
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-22
12.90€
Ex Tax: 10.66€

Qty

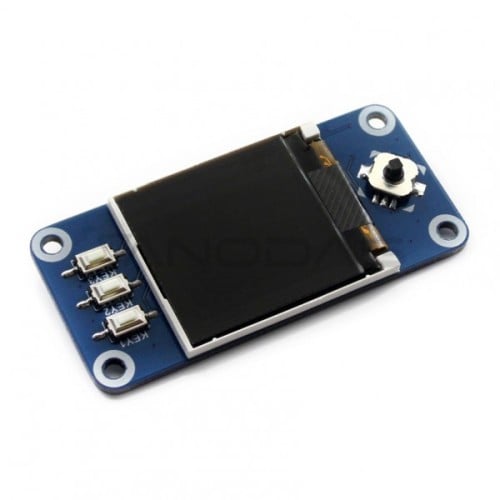

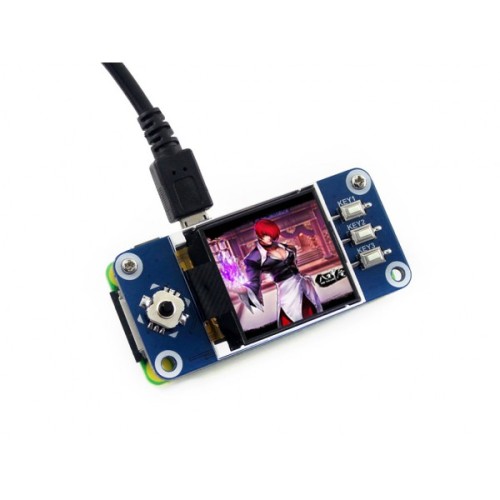

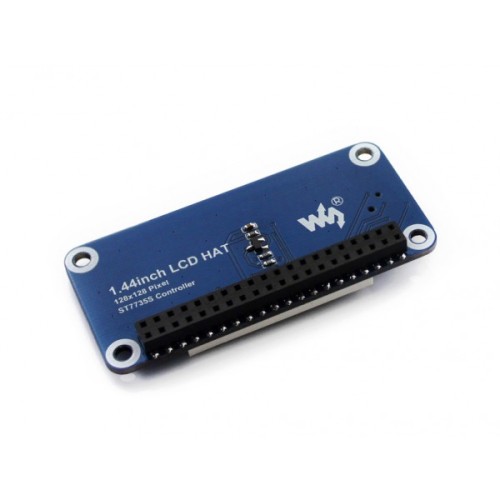

Shield for Raspberry Pi with TFT LCD display of 1.44" and a resolution of 128 x 128 px. Screen based on ST7735S driver, it communicates through the SPI bus. Additionally, on the board is a joystick and three buttons.

Technical data:

  • Driver: ST7735S (documentation)
  • Interface: SPI
  • Display color: RGB, 65K
  • Resolution: 128 x 128 px
  • Supply voltage: 3.3 V
  • Backlight: LED
  • Dimensions: 65 x 30,2 mm
Included:

  • Waveshare Raspberry Pi Hat Screen
