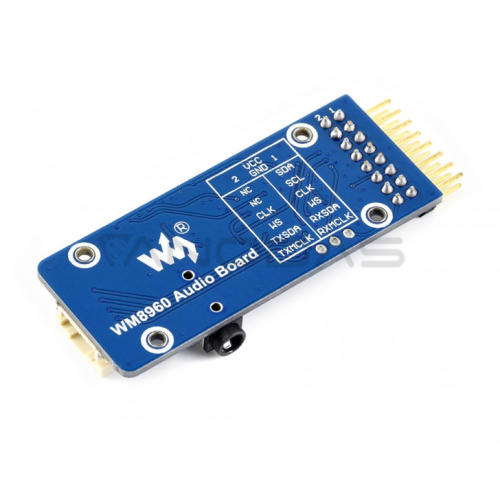

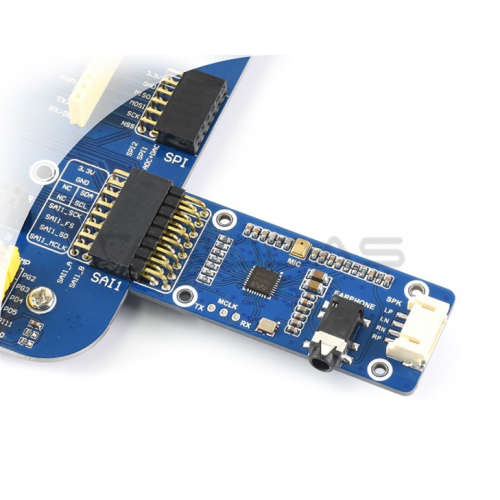

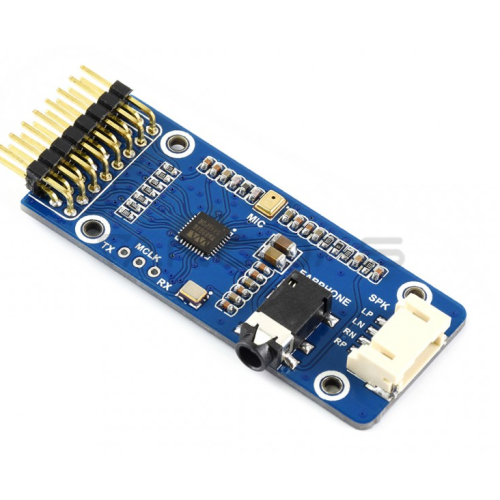

Waveshare WM8960 Stereo CODEC Audio Module I2C 3.3V 3.5mm WAV

Product Code: WSR-13307
Availability: Temporarily Out Of Stock
10.70€
Ex Tax: 8.84€

Qty

Waveshare WM8960 Stereo CODEC Audio Module - This low power audio module is based on WM8960, supports stereo encoding/decoding, supports sound recording, what's more, it can directly drive speakers to play music.

Features:

Integrates high-quality MEMS silicon Mic, supports sound recording

Onboard standard 3.5mm 4-segment earphone jack, allows sound recording via external earphones with Mic

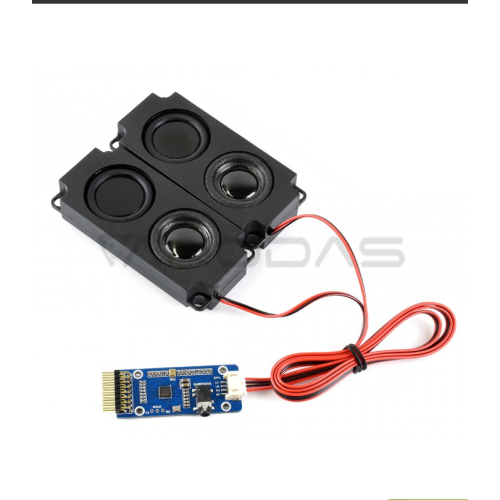

Onboard dual-channel speaker interface, directly drives speakers

Supports common audio sampling rates such as 8/11.025/22.05/44.1/48KHz, etc.

Supports sound effects such as stereo, 3D surrounding, etc.

Specifications:

CODEC: WM8960
Operating voltage: 3.3V
Control interface: I2C
Audio interface: I2S
Audio format: WAV
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16Ω@3.3V)
Speaker driver: 1W per channel (8Ω BTL)

Additional information:

Wiki
