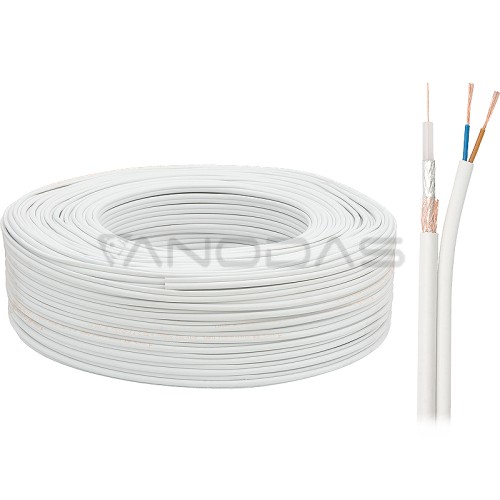

WDX 0.59/3.7 coaxial cable
Ex Tax: 0.99€
K-60 coaxial cable with 2x0.5 additional core
CONSTRUCTION
- Inner wire: Cu 0.59
- Core insulation: PE
- Diameter: [mm] 3.7
- Outer conductor: Cu wire braid
- Coating: PVC white or black
- Outer diameter: [mm] 5.8
ELECTRICAL PROPERTIES AT 20 °C
- Wave impedance: [Ohm] 75 +/- 3
- Effective capacitance: [pF/m] at f=1kHz 67.1
- Wave shortening factor: [%] 65
- DC resistance [m Ohm/m]:
internal vein: 60
external vein: 33
Wave attenuation [dB/100 m] - average at frequency [MHz]:
50 7.1
100 10.2
200 14.5
300 18.6
500 25.5
800 33.1
1000 37.5
1500 47.1
OTHER DATA
- Temperature range: [°C] -30 to +75
- Bending radius: [mm] 40
- Finish: [m] 200
CONSTRUCTION
- Inner wire: Cu 0.59
- Core insulation: PE
- Diameter: [mm] 3.7
- Outer conductor: Cu wire braid
- Coating: PVC white or black
- Outer diameter: [mm] 5.8
ELECTRICAL PROPERTIES AT 20 °C
- Wave impedance: [Ohm] 75 +/- 3
- Effective capacitance: [pF/m] at f=1kHz 67.1
- Wave shortening factor: [%] 65
- DC resistance [m Ohm/m]:
internal vein: 60
external vein: 33
Wave attenuation [dB/100 m] - average at frequency [MHz]:
50 7.1
100 10.2
200 14.5
300 18.6
500 25.5
800 33.1
1000 37.5
1500 47.1
OTHER DATA
- Temperature range: [°C] -30 to +75
- Bending radius: [mm] 40
- Finish: [m] 200
