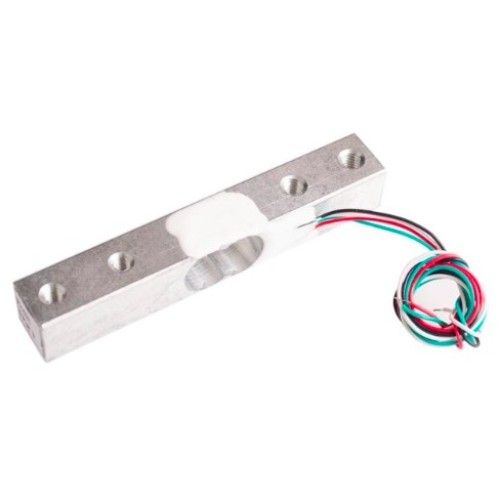

Weight Sensor 10kg

Product Code: AN0502
EAN: 4779044515653
Availability: Vilnius Store In Stock
Kaunas Store In Stock
5.70€
Ex Tax: 4.71€

Qty

Weight sensor capable of measuring loads up to 10 kg, suitable for small hanging scales. Have you ever considered how to measure loads and weights electronically? This is done by using force sensors (Load-cells), which work by measuring the change in resistance of the sensor due to metal deformation. Sensors of this type are often found in store scales.
Recommended for use with the HX7111 force sensor interface module.

Note: Do not damage the white plastic as there is a sensor there. Holes with screws are provided for fixing the weights.

Technical data:
● Measured load: up to 10 kg
● Operating voltage: 5-10V DC
● Output signal type: analog

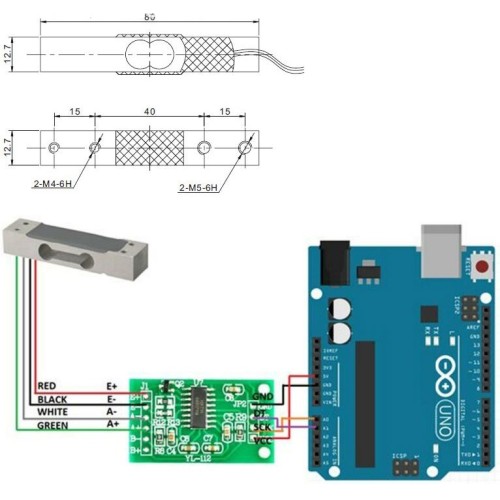

● Dimensions: 80 x 12.7 x 12.7mm
● Connector layout: red - black, green - white

Links and customization:
● Hanging kitchen scales
● Load measurement
