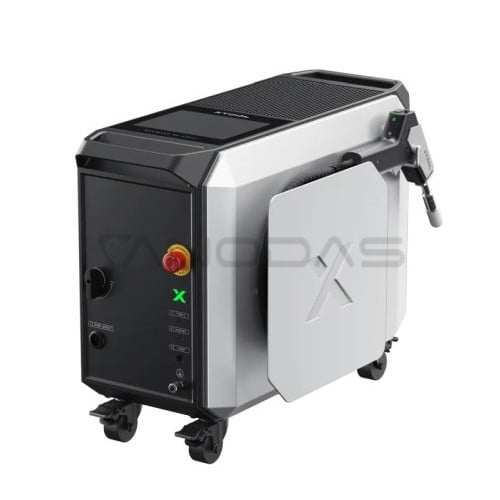

xTool MetalFab Laser Welder 1200W

Brand: xTool
Product Code: P1030708
Availability: Delivery 3-7 work days

9,065.00€
Ex Tax: 7,491.74€

Qty

Add to Wish List

The xTool MetalFab 1200W is a professional-grade fiber laser welding system built for demanding metal fabrication tasks. With increased power and enhanced stability, it welds thicker materials faster and cleaner—ideal for heavy-duty applications in industrial settings. From structural welding to precision joint work, the MetalFab 1200W delivers exceptional results with minimal heat distortion.

Key Features

1200W fiber laser enables welding up to 6 mm thick
Fast, clean welds with high energy efficiency
Built-in wire feeder supports multiple wire types and sizes
Air-cooled and compact for workshop environments

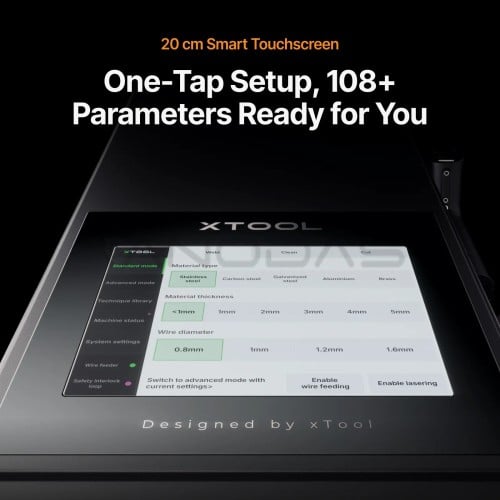

Simple touchscreen interface with smart welding presets

Optional CNC Cutter Module – Add Precision Cutting to Your Workflow

For those who want more from their setup, the MetalFab 1200W can be expanded with the optional CNC cutting module. This attachment transforms your system into a dual-function metalworking machine, enabling precise laser cutting on stainless steel, aluminum, carbon steel, and other metals. It’s ideal for sheet metal fabrication, custom part production, signage, and more.

Using smart path planning and high-speed motion control, the cutter delivers clean edges and detailed contours with minimal waste. The transition between welding and cutting modes is seamless, offering ultimate flexibility for professional creators who demand both functionality and precision from a single system.

It’s Proven to Last 30% Longer Than Others.

Built with high-quality industrial-grade materials, a Coherent chip, advanced temperature adaptability, intelligent thermal control, and high-performance cooling, the device delivers stable performance even in extreme temperatures (-10°C to 40°C). The design minimizes overheating risks, ensuring long-term reliability and cost-efficiency during high-load and extended operations. With a lifespan exceeding 10,000 hours, it outlasts competitors by 30%.

Specifications

Parameter	xTool MetalFab Laser Welder 1200W	xTool MetalFab Laser Welder 800W
Laser Power	1200 W	800 W
Laser Type	Fiber Laser	Fiber Laser
Processing Mode	Welding / Cutting / Rust Removal & Cleaning	Welding / Cutting / Rust Removal & Cleaning
Welding Modes	Continuous / Spot / Pulse	Continuous / Spot / Pulse
Supported Materials	Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc.
Processing Thickness	0.2 – 5 mm	0.2 – 4 mm
Wavelength	1080 ± 10 nm	1080 ± 10 nm
Photoelectric Conversion Efficiency	36 %	36 %
Recommended Gases	Nitrogen or Argon	Nitrogen or Argon
Cooling System	Air Cooling	Air Cooling
Safety Certification	Class 4 Laser Safety	Class 4 Laser Safety
Rated Power	4200 W	3000 W
Input Voltage	200–240 V, AC 50/60 Hz	200–240 V, AC 50/60 Hz
Full-load Current	Max. 21 A	Max. 15 A
Storage Temperature	-10 ℃ – 60 ℃	-10 ℃ – 60 ℃
Operating Temperature	-10 ℃ – 40 ℃	-10 ℃ – 40 ℃
Machine Dimensions	728 × 327 × 512 mm	632 × 304 × 472 mm
Machine Weight	38.2 kg	35 kg
Integrated Wire Feeder	No (Free Wire Feeder Machine Included)	Yes
Cable Length	5 m	3.5 m

Tags: xtool, metalfab, laser, welder, 1200w, equipment
