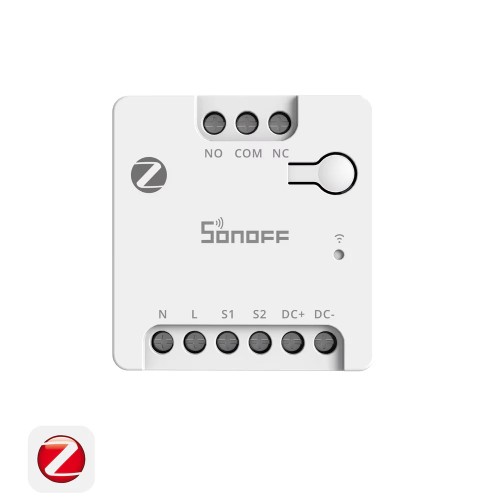

Zigbee dry contact smart switch Sonoff MINI-ZBD

Zigbee dry contact smart switch Sonoff MINI-ZBD

Technical information:

Usage 100-240V~ 50/60Hz 0.1A Max O 12-48V⎓1A Max μ

Load 24V⎓2A Max. resistive load OR 12/24V⎓8W

Zigbee IEEE 802.15.4

Net weight 34.5 g

Dimensions 41x43x21.5 mm

White color

Housing material PC

Suitable place inside

Wires from 18AWG to 14AWG (0.75 mm² to 1.5 mm²)

Operating temperature 10T40 (-10℃~40℃)

Operating humidity 5% ~ 95% RH, non-condensing

Working altitude less than 2000 m

Rated impulse voltage 4KV

Automatic operation 20000 cycles

Certification CE/FCC/RoHS

Specification:

【Flexible AC and DC Power Compatibility】 Designed for both 110-240V AC and 12-48V DC input power, it can be flexibly installed in traditional home electrical wiring systems or low-voltage solar and battery-powered automation systems without the need for additional power converters.

【Reliable control of low-voltage DC devices】 Supports stable control of DC motors and solenoid valves up to 8W, with faster response and lower impedance, providing better load protection.

【Dry Contact Output with NO/NC Support】 A dry contact relay is designed to support both normally open (NO) and normally closed (NC) modes, allowing for safe and flexible control of garage doors, boilers, electric gates, water pumps, fire alarm systems, etc. without changing existing wiring.

【Easy high-power expansion with contactors】 When combined with contactors, high-power equipment can be controlled using low-power signals, including AC devices, large pumps, and industrial lighting—no need for expensive high-power smart switches.

【Smart Zigbee Integration and Signal Repeater】 Supports Zigbee protocol and works with Zigbee hubs to enable remote control, voice commands, smart scheduling, and advanced automation via eWeLink App or platforms like Home Assistant. It also works as a Zigbee router to extend network coverage and reduce dead zones.

SONOFF MINI Dry Zigbee dry contact smart switch

* Zigbee hub required

Garage doors

VOK system / heating system

Irrigation and sprinkler system

Constant current low power solenoid valve/motor

Home theater
Electric screen

12V-24V system
for campers and/or boats

MINI-ZBD with Turbo Mode boosts Zigbee signal strength, extends coverage range, and provides a stable, high-performance connection for your smart home Zigbee network.

Control your garage door remotely with MINI-ZBD. Enable automated access, real-time control, and greater convenience from anywhere.

Automate your SG-Ready heat pump to reduce energy consumption, cut costs and improve overall home comfort.

Take control of your water usage with customized watering schedules. Enjoy a smarter, more efficient irrigation system that helps you reduce your water bills while your garden thrives.

Specially designed to control DC low-power solenoid valves and motors up to 8W, ensuring stable and reliable operation for your smart automation projects.

After a one-time setup in the Home Assistant app, the SNZB-01M button communicates directly with the MINI-ZBD—no gateway required.

All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, allowing for seamless control of interconnected devices.

Learn more about ZBBridge-U | Learn more about eWeLink CUBE

1. Matter Bridge: ZBBridge-U, iHost, Cube OS with SONOFF Zigbee Dongle
2. To perform this function, you need to add the device to the eWeLink app via the SONOFF Zigbee gateway and synchronize it with third-party platforms via cloud-to-cloud integration.

Easy to set up. Download the app, scan the QR code to connect to the Zigbee hub, and take control!

*Requires a compatible SONOFF Zigbee hub.
