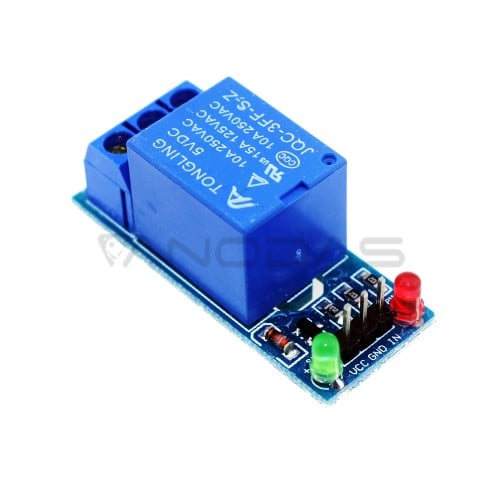

1 Channel Relay Module - Low Level Trigger

Product Code: AN0047
EAN: 4779044510221
Availability: Vilnius Store In Stock
Kaunas Store In Stock
2.00€
Ex Tax: 1.65€

Qty

With isolation groove in control area and load area. With power and relay action indication, bright when connect and go off when disconnects. When there is a signal in signal input, public side and common side will breakover.
It can be not only used as a microcontroller development board module, but also as a home appliance control. It can not only control the DC or AC signal, but the 220V AC load. With a  permanent open and close vents contact.
It is convenient to connect with blue KF301 terminal access control cable.
Specification:

  • VCC: Power interface ,5V
  • GND: Ground
  • IN: Control interface .Drive Current at least 4mA
  • COM: Control circuit ground ,Connect to GND
  • Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''
  • Weight: approx. 12g
Note:

  1. High level flip-flops shows that there are trigger mode of the voltage between the signal input terminal and the ground; That is to say it is a way of short circuit trigger between signal input and VCC positive pole. Low level
  2. flip-flops shows that there are voltage for OV trigger mode  between the signal input terminal and the ground. In a word, it is a way of short circuit trigger between signal input and GND negative pole.
  3. Please allow 1-3mm differs due to manual measurement.
  4. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understand
