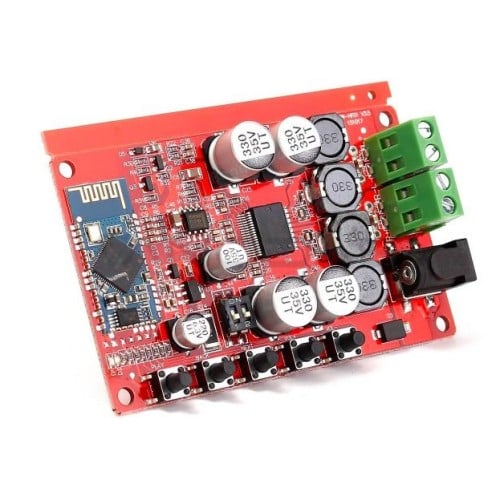

2x50W TDA7492P Digital Amplifier Board with Bluetooth CSR4.0 Receiver

Product Code: AN0214-113A
EAN: 4779044510511
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Ex Tax: 20.66€



Material: PCB

Amplifier Board Size(L*W*H): 80 x 55 x 15 mm

Power: 2.1 interface 8 ~ 25 V DC power supply

Output Impedance: 8 ohms Best (4,6,8,16 ohm impedance can drive speakers)

Output Power: powered 25 V, 6-ohm impedance output 2 X 50W, 8 ohm impedance output 2X40W dual-channel

Audio input: stereo input various versions of the Bluetooth connection, using CSR8630 Bluetooth chip, Bluetooth V4.0, high software compatibility


1. TDA7492P digital amplifier chip, designed to optimize the circuit layout, the sound quality is very good, big power.

2. DIP switches can be adjusted directly after the amp gain more respect and better promote greater damping horn.
