CSMIO-IP-A +/- 10V Ethernet Motion Controller

This is a product for professional users - CSMIO-IP-A +/- 10 V digital CNC controller for applications requiring high precision and increased reliability. This controller. this is a proposition for users. who approach the issue of CNC professionally. paying attention to the reasonable price for the product. For the user, this controller is almost identical to CSMIO/IP-S, only the control system drive used differs.

CSMIO-IP-A is connected to the computer via an Ethernet link. which increases transmission speed and stability compared to the most popular LPT. Makes it happen. that the device is even more reliable.

Meeting the needs of users. who prefer the +/-10V standard for servo drive control. CSMIO/IP-A is equipped with such an interface. and very fast encoder inputs allow full use of encoders with a high number of pulses per revolution. allowing you to achieve precision and speed previously unavailable in this price sector.

In addition. CSMIO-IP-A has many different digital and analog ports. with the possibility of further expansion by using expansion modules. And yes. The standard equipment includes 24 digital inputs. 16 digital outputs. 4 analog inputs. 2 analog outputs 0-10V. 6 analog outputs +/-10V and six encoder inputs.

The controller cooperates with the Mach3 program due to its attractive price. popularity and enormous possibilities of adapting to specific requirements.

• Connection to a computer via Ethernet
• Support for up to six axes
• Analog control of +/-10V axes
• Extremely stable machine speed control thanks to the use of specialized FPGA systems and advanced regulation algorithms.
• 24 digital inputs and 16 digital outputs (can be expanded with additional modules)
• 4 analog inputs / 2 analog outputs (0-10V)
• All I/Os are opto-isolated and protected against short circuit and overheating - 24V industrial standard.
• Support for up to 3 dependent axes with the possibility of correcting the machine geometry.
• Spindle inverter control via analog output.
• Possibility to expand functions through additional CanOpen modules. The following modules are currently available:
• CSMIO-IO - module with additional 16 inputs and 8 outputs (24V, opto-isolation, overload protection). It is possible to connect up to 10 such modules.
• CSMIO-JOG - MPG connection module - very smooth control of machine movement. automatic switching between speed and position mode.
• Work on the CSMIO-SCAN module - for operating the laser scanner - is also close to completion.
• Solid aluminum housing. good heat dissipation. and perfectly protects the electronic circuits of the device.
• Convenient mounting on a DIN rail.
• Successively developed software and the ability to update it yourself.
• Ability to control all digital and analog signals via VisualBasic macros.
• Support for FAULT signals from servo drives - immediate stopping of the machine in the event of a failure of any of the axis.
• RESET support for axis drives.
• Clear controls on the front panel. facilitating installation work.
• In the next updates there will be support for screw mapping and threading.

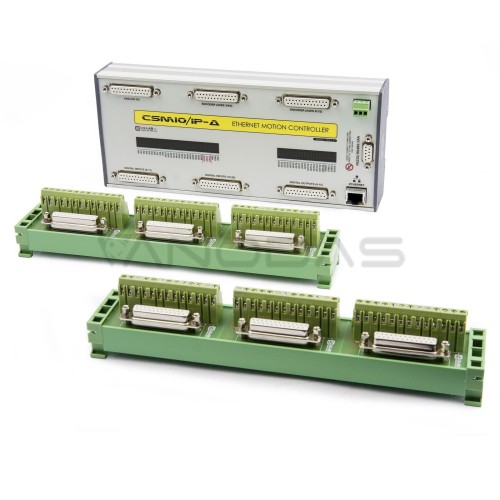

The device is delivered in a cardboard box with DB Terminal Block adapters for more convenient connection of cables in the control cabinet. Detailed package content:

• CSMIO/IP-A CNC controller

• 3x DB25 Terminal block adapter (2 pcs.)

• Ethernet connection cable

• DB25 connecting tape (6 pcs.)

• "Phoenix" 3-pin power plug

•CD with the electronic version of the user manual and software

(check the manufacturer's website for a newer software version)

Control via the Ethernet port has many advantages. here are the most important ones:

• stable connection of the PC (MACH) with the controller, which is certainly missing in the case of USB control
• the distance of the controller from the machine exceeds 5m, unlike in the case of USB or LPT
• control up to 6-axis
• generating STEP/DIR pulses with very high accuracy, repeatability and frequency
• large number of fast input and output ports (digital, analog)
• great possibilities of expansion with additional modules (I/O as well as specialized ones, e.g. JOG). which, in the case of writing scripts, allows you to connect additional devices such as extensive tool storages and others..
• system fully adapted to work in an industrial standard (I/O in the 24V standard)

The device is equipped with a proprietary real-time operating system (ProcSequencer). SOFTWARE UPDATES

All CS-LAB controllers have a loading program installed (so-called bootloader), so there is no risk of damaging the equipment in the event of an unsuccessful software update. The update is performed using an intuitive update wizard. does not require knowledge of the equipment itself. The latest software for our controllers is always available on our website.
