DC Motor SJ01 120:1 6V 160RPM + enkoder

Product Code: DFR-06287
Availability: 3-5 business days
Planned delivery date after ordering: 2020-12-07
11.30€
Ex Tax: 9.34€

Qty

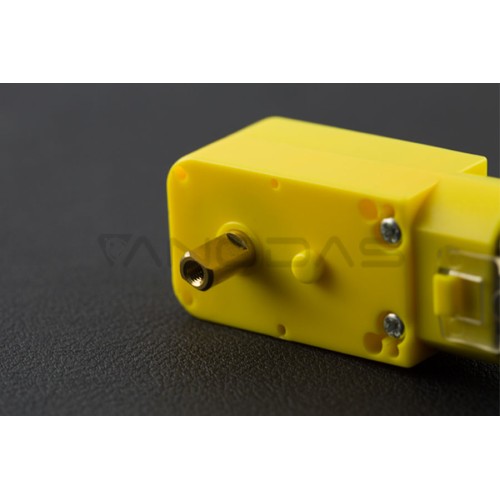

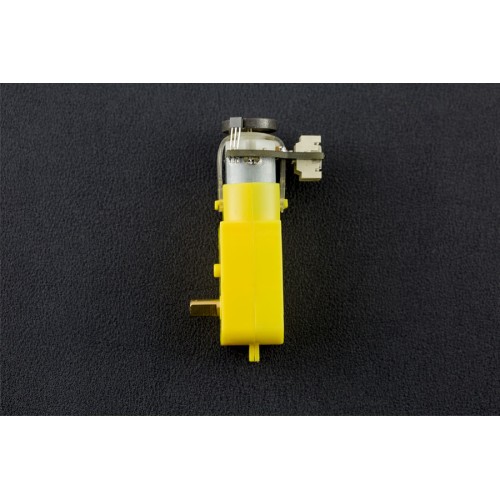

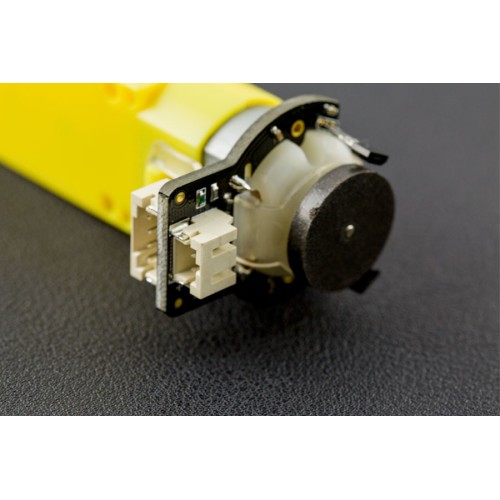

This is the DFRobot TT Micro DC geared motor with encoder. It is a motor with a 120:1 gearbox and an integrated quadrature encoder that provides a resolution of 16 pulse single per round giving a maximum output of 1920 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.

SPECIFICATION

  • Gear ratio: 120:1
  • No-load speed @ 6V: 160 rpm
  • No-load speed @ 3V: 60 rpm
  • No-load current @ 6V: 0.17A
  • No-load current @ 3V: 0.14A
  • Max Stall current: 2.8A
  • Max Stall torque: 0,07 Nm
  • Rated torque: 0,02 Nm
  • Encoder operating voltage: 4.5~7.5V
  • Motor operating voltage: 3~7.5V (Rated voltage 6V)
  • Operating ambient temperature: -10~+60℃
  • Weight: 50g

DOCUMENTS

SHIPPING LIST

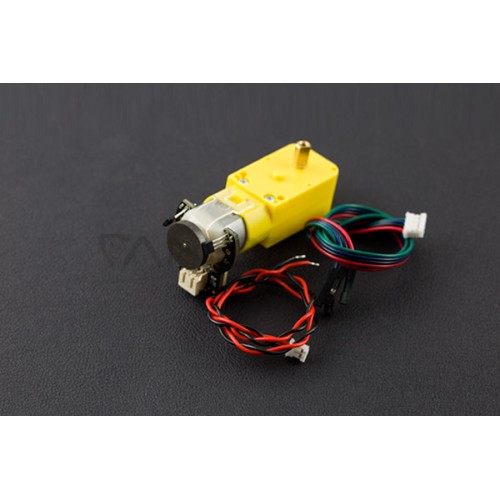

  • Micro DC Motor with Encoder-SJ01 x1
  • JST 2-Pin motor cable x1
  • JST 4-Pin encoder cable x1
