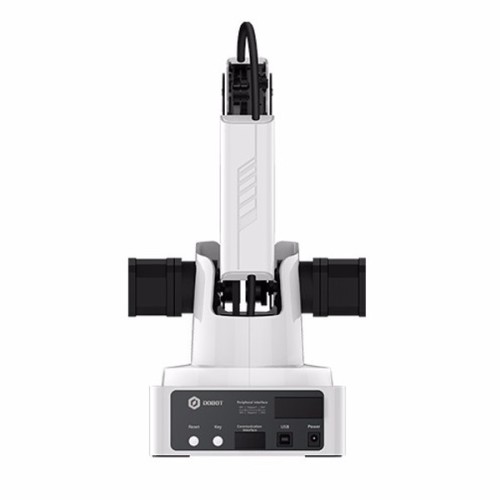

Dobot Magician Robot Arm - Educational Version

The Dobot Magician is a multifunctional desktop robotic arm perfect for the classroom, workshop or even factory environments. Installed with different end-tools the Dobot Magician can easily complete interesting functions such as 3D printing, laser engraving, writing and drawing. It supports development with 13 extensible interfaces and over 20 programming languages, which really makes the possible uses endless. With a great performance both in hardware design and software application the Dobot Magician has won the CES 2018 Innovation awards and iF DESIGN AWARD 2018.

Control it via PC/Mac, phone, gesture, voice, even brainwave can be used to control Dobot Magician. The handhold teaching feature lets you control a robotic arm without any technical knowledge. With the standardised plug-in style end tool holder, you can switch end tools by simply screwing. Dobot Magician’s controlling software DobotStudio is integrated so many features, while still making it easier to control a robotic arm than ever before. DobotStudio also has a whole set of parameters for you to change and customise. You can even control your own robotic arm without any coding!

The uses for the Dobot are only limited by your imagination, it can do anything from simple picking and placing to 3D printing and so so much more! Draw like magic, it supports BMP, SVG and DXF 0.2mm precision, laying perfect strokes. Print intricate 3D models up to 15x15x15cm in size with a resolution of up to 0.1mm using PLA.

Educational Version: This version also includes the Laser Kit allowing you to engrave personalised patterns on various material like leather, kraft liner board, wood and many more. WiFi and Bluetooth modules allow for even more ways to communicate with the robotic arm and the Joystick Kit provides an additional unique way to control the arm.

For the full list of everything included in the Dobot Magician Educational Version check the Features tab!

Includes:

• Robotic Arm
• Power Adaptor & USB Cable
• Writing & Drawing Kit
• Pen Holder
• Pen
• Pneumatic Kit
• Pneumatic Gripper
• Suction Cup & Joint 4
• Air Pump Controller
• 3D Printing Kit
• Extruder
• Hot End
• 3D Filament Holder
• 200g PLA Filament
• Masking Tape
• Laser Kit
• Laser Module
• Laser Protective Glasses
• WiFi Module
• Bluetooth Module
• Joystick Control Kit
• USB Connector Host
• Joystick
• Tool Package
• Jackscrew x 2
• Hexagon Screwdriver
• Quick Fix Kit
• Calibration Tool
• Accessories
• Use Manual
• Glass Plate (3D Printing)

Specifications:

• Number of Axis: 4
• Payload: 500g
• Max Reach: 320mm
• Position Repeatability (Control): 0.2mm
• Communication: USB, WiFi, Bluetooth
• Power Supply: 100V-240V, 50/60Hz
• Power In: 12V/7A DC
• Working Temp: -10 - 60 C

 Axis Movement:

• Joint 1 (Base): -90° to + 90°, 320°/s Max Speed (250g workload)
• Joint 2 (Rear Arm): 0° to +85°, 320°/s Max Speed (250g workload)
• Joint 3 (Forearm): -10° to +95°, 320°/s Max Speed (250g workload)
• Joint 4 (Rotation Servo): +90° to -90°, 480°/s Max Speed (250g workload)

Physical:

• Net Weight: 3.4KG
• Gross Weight: 7.2KG
• Base Dimensions (Footprint): 158 x 158mm
• Materials: Aluminum Alloy 6061, ABS Engineering Plastic
• Controller: Dobot Integrated Controller

Applications:

• Software: DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor)
• SDK: Communication Protocol, Dobot Program Library
• Expandable I/O Interfaces:
• I/O × 10 (Configurable as Analog Input or PWM Output)
• Controllable 12V Power output × 4
• Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included)
• Stepper × 2

End Effectors:

• 3D Printer Kit
• Max Print Size: 150x150x150mm
• Material: PLA
• Resolution: 0.1mm
• Laser
• Power Consumption: 500mW
• Type: 405nm (Blue Laser)
• Power: 12V, TTL trigger (with PWM Driver).
• Pen Holder
• Pen Diameter: 10mm
• Vacuum Suction Cap
• Cap Diameter: 20mm
• Pressure -35 KPa
• Gripper
• Range: 27.5mm
• Drive Type: Pneumatic
• Force: 8N
