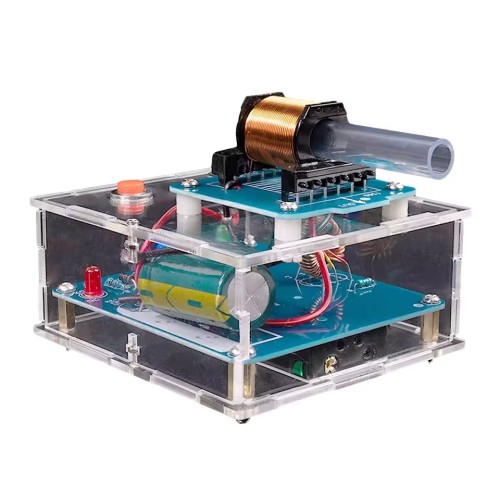

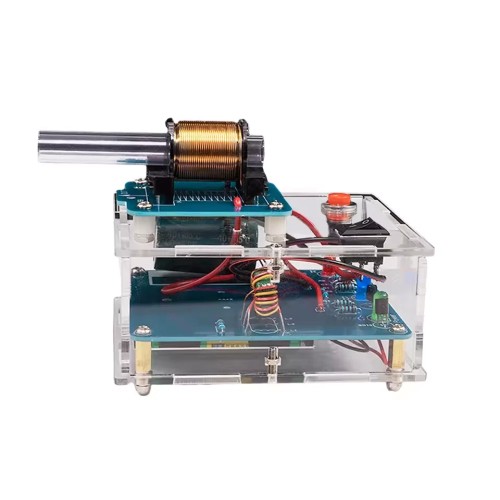

Electromagnetic Cannon Soldering Educational Kit

Electromagnetic Cannon Soldering Kit

Features:

1. An electromagnetic launcher is a device that uses electromagnetic force to accelerate objects. By utilizing electromagnetic pulses, a projectile is accelerated to a high speed and then launched.
2. This improved electromagnetic launcher kit features both a charging circuit and a charge level indicator. As a result, the device charges faster, offers a greater firing range, and achieves a quicker launch.

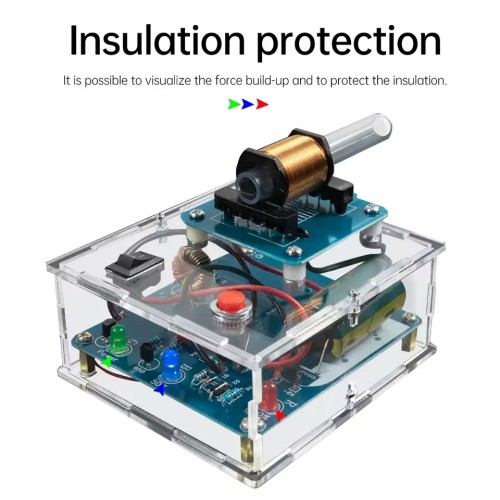

3. The charge level indicator allows for convenient monitoring of the charging status.
4. The battery compartment is located on the bottom—an aesthetic and practical design that allows for battery replacement without needing to disassemble the housing.
5. This kit is ideal for developing soldering skills, conducting electronics experiments, and is perfect for DIY enthusiasts.

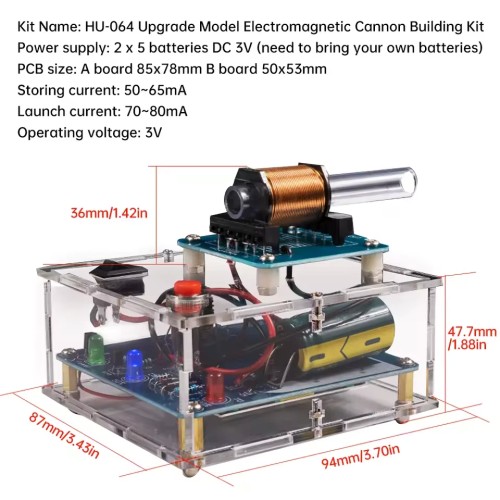

Specifications:

• Operating voltage: 3V
• Power source: 2 x AA batteries (3V DC; batteries not included)
• Charging current: 50–65 mA
• Firing current: 70–80 mA
• PCB (printed circuit board) dimensions: Board A – 85x78 mm; Board B – 50x53mm

Instructions for use:

1. Turn on the power switch (toggle switch K1) – the green LED will light up.
2. Wait approximately 10–30 seconds; when the blue light turns on, the energy reserves have reached about half capacity.
3. Insert the projectile into the rear end of the barrel. Press the firing button (round button K2) – the projectile will be launched from the barrel; the shot is fired.

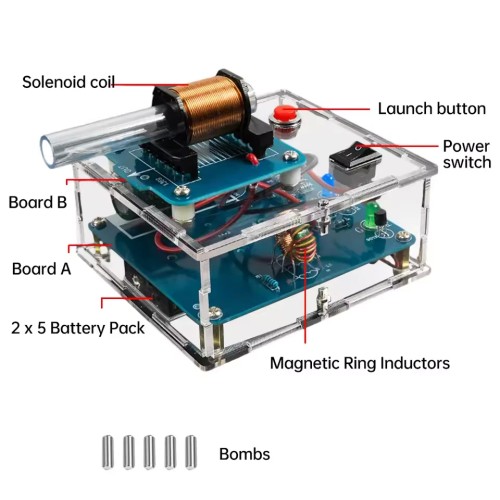

Core technologies of electromagnetic launchers:

Power system: Provides the high voltage required to generate powerful electromagnetic forces. Capacitors or battery packs are typically used.

Electromagnetic accelerator: A device designed to accelerate objects; it consists of a coil and a mount. When an electric current flows through the coil, a strong magnetic field is generated, which acts upon the projectile and causes it to accelerate. Control system: Designed to precisely manage the firing process of electromagnetic launchers, including triggering the shot and monitoring the firing rate.

Please note:

When the electromagnetic device is fully charged, a red light turns on. Because the charging process takes a long time and the battery energy gradually depletes, the red light may not always illuminate. When the blue light is on, the device is ready to fire.

High-voltage hazard!!! If you need to solder a capacitor during assembly or use, be sure to discharge it first (using an insulated wire with exposed copper ends: hold the wire by the insulated section and touch the exposed ends to both of the capacitor's contacts). Failure to do so could result in a short circuit, posing a danger!

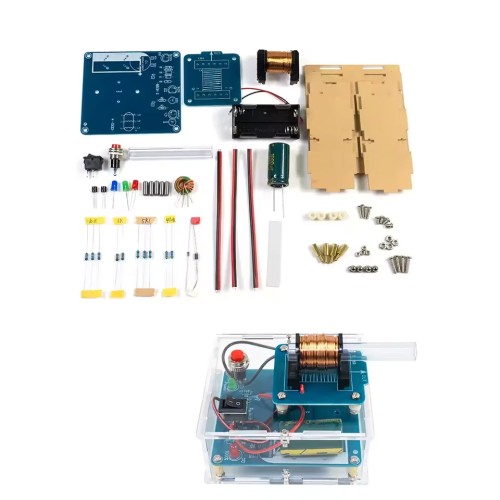

Requires assembly and soldering! You will need your own soldering tools; detailed video instructions for assembly are provided.
