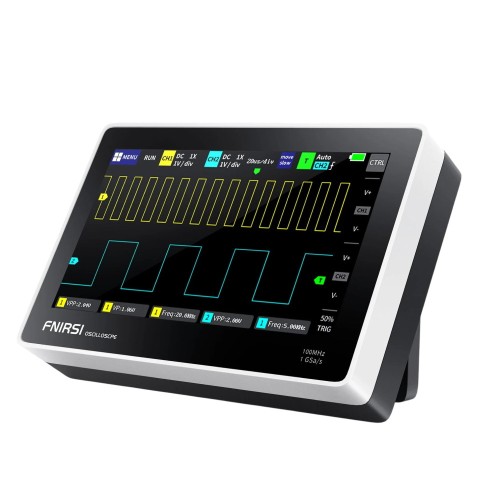

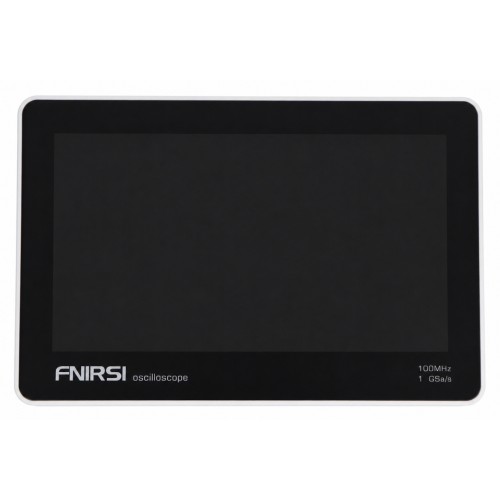

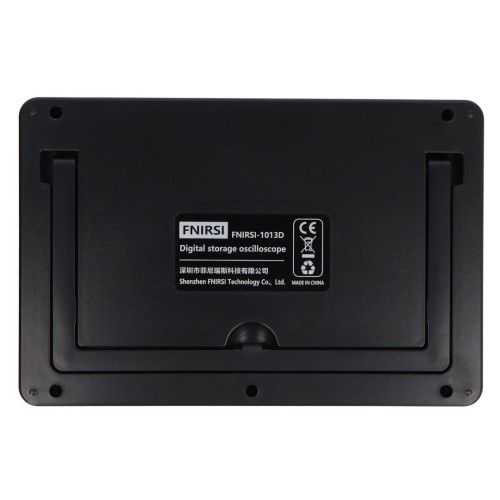

FNIRSI-1013D - Portable Digital Oscilloscope with 2x 100MHz Touchscreen

Brand: FNIRSI
Product Code: AN-28205
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2026-08-31

144.10€
Ex Tax: 119.09€

Qty

Add to Wish List

The FNIRSI-1013D is a state-of-the-art, dual-channel digital oscilloscope for electronics diagnostics, service, research and development. It offers 100 MHz bandwidth per channel and 1 GS/s real-time sampling rate, allowing for accurate analysis of both analog and digital signals.

Specifications:

Model: 1013D
Device type: Digital oscilloscope
Number of channels: 2
Analog frequency range: 2 x 100 MHz
Sample rate: 1 GS/s
Rise time: < 3 ns
Memory depth: 240 kbit
Vertical sensitivity: 50 mV to 500V
Input impedance: 1 MΩ
Time base: 50 s to 10 ns
Trigger modes:
- Single
- Normal
- Automatic
Trigger edge:
- Rising
- Falling
Input connection: AC / DC
Maximum measurement voltage:
- 1X: up to 40V
- 10X: up to 400V
- 100X: up to 4000V
Display: 7 inch TFT LCD
Screen resolution: 800 x 480 pixels

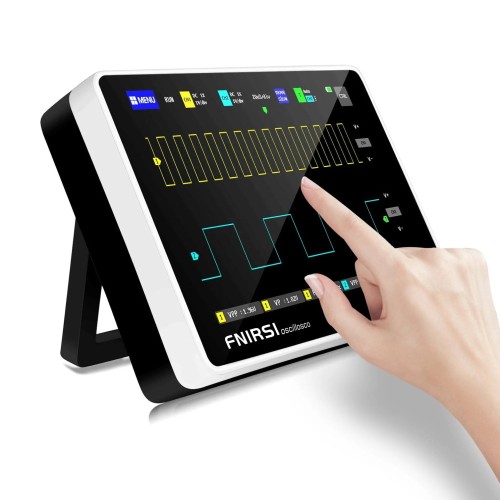

Touch control: Capacitive touchscreen
AUTO function: Yes
FFT: Yes
Lissajous figures: Yes
Cursor measurement: Yes
Waveform manager: Yes
Internal memory:
- Up to 1000 screenshots
- Up to 1000 waveforms
Data export: USB
Battery: 6000 mAh
Operating time: Up to 4 hours
Charging: USB Type C 5V / 2A / 3A / 4A
Voltage accuracy: ±2%
Frequency accuracy: ±0.01%
Number of automatic measurement parameters: 12

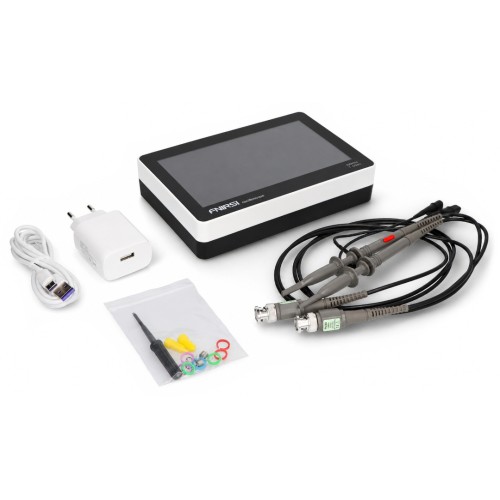

In the kit:

FNIRSI-1013D oscilloscope
USB Type C cable

Tags: fnirsi-1013d, portable, digital, oscilloscope, with, 100mhz, touchscreen, measuring, equipment
