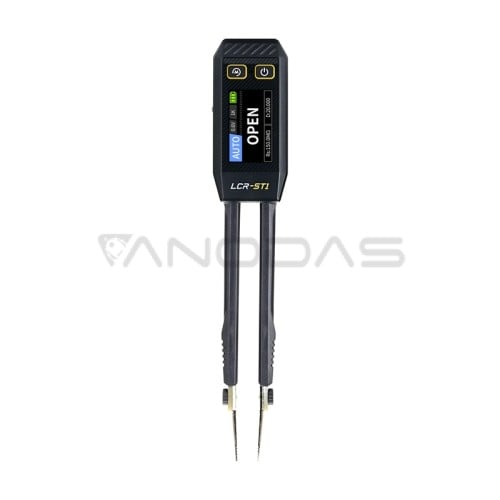

FNIRSI LCR-ST1 mini smart digital tweezer tester

Brand: FNIRSI
Product Code: LCR-ST1
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-11-07

31.90€
Ex Tax: 26.36€

Qty

Add to Wish List

Description Product Delivery

FNIRSI LCR-ST1 mini smart digital tweezer tester

The FNIRSI LCR-ST1 is a multi-function tweezers meter for testing surface-mount electronic components. It supports resistance, capacitance, inductance, ESR, diode test and circuit continuity measurement. It offers 3 test frequencies (100 Hz, 1 kHz, 10 kHz), test levels of 0.3 V and 0.6 V RMS, and display of additional parameters such as Q, D, Z and X. With its compact design, interchangeable terminals and USB-C interface, the device is ideal for laboratory, service and production applications.

Automatic measurement mode

The device automatically recognizes the type of component under test and displays both the main and auxiliary parameters. This solution makes working with multiple components easier and eliminates the need to switch modes manually. The meter supports English and Chinese.

Detailed analysis

The FNIRSI LCR-ST1 meter measures not only basic values (R, L, C), but also loss factor (D), impedance (Z), quality factor (Q), reactance (X) and equivalent series resistance (ESR). Such functionality allows for comprehensive component diagnostics. Measurement ranges include capacitance from 1 pF to 22 mF, inductance from 1 µH to 10 H, and resistance from 10 mΩ to 10 MΩ.

Screen and operating ergonomics

The 1.14" HD display presents data in an easy-to-read manner. Intuitive menus, buttons with silicone overlays and a side dial improve operation. In addition, the data storage function allows you to export measurements to an Excel file via USB. The display shows 2 measurement parameters simultaneously, speeding up analysis. The gold-plated tips of the tweezers are interchangeable - the set includes both a classic straight tip and a curved "hook" type. This makes the tool suitable for a variety of applications - including in hard-to-reach places. The built-in magnet allows you to temporarily stick the meter to metal surfaces.

Performance and mobility

A 250 mAh rechargeable lithium-ion battery provides long runtime, and charging is via a USB-C port. An automatic shut-off function saves power when there is no activity. The whole device weighs only 41 g, so it is convenient to carry around.

Included:

FNIRSI LCR-ST1 multi-functional tweezer meter
Curved tips (1 pair)
Magnetic stand
USB cable for charging
User manual

Manufacturer	FNIRSI
Model	LCR-ST1
Display	Color screen 1.14"
Charging interface	USB Type-C, 5V/1A
Power supply	250 mAh rechargeable lithium battery
Dimensions	28 × 19 × 150 mm
Weight	41 g
Capacitance measurement range	1 mF - 22 mF (100 Hz, 1 kHz ±5%) 1 µF - 1 mF (100 Hz, 1 kHz, 10 kHz ±2%) 1 nF - 1 µF (100 Hz ±2%, 1 kHz and 10 kHz ±0.5%) 1 pF - 1 nF (1 kHz and 10 kHz ±2%)
Inductance measurement range	1 H - 10 H (100 Hz, 1 kHz ±5%) 1 mH - 1 H (all frequencies ±2%) 10 µH - 1 mH (100 Hz ±2%, 1 kHz and 10 kHz ±0.5%) 1 µH - 10 µH (10 kHz ±2%)
Resistance measurement range	1 MΩ - 10 MΩ (100 Hz, 1 kHz ±5%) 1 kΩ - 1 MΩ (100 Hz, 10 kHz ±1%, 1 kHz ±0.5%) 1 Ω - 1 kΩ (all frequencies ±0.5-1%) 10 mΩ - 1 Ω (all frequencies ±2%)
Diode test	Conduction voltage: 0.7 V
