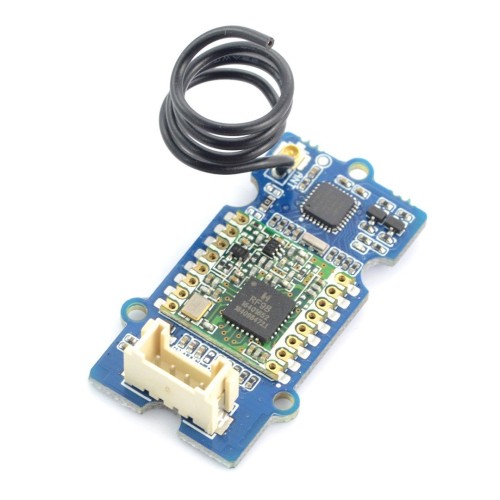

Grove, LoRa Radio module 433MHz

Brand: Seeedstudio
Product Code: AN-09086
Availability: Temporarily Out Of Stock
27.10€
Ex Tax: 22.40€

433 MHz RFM95 radio module of the long-range (Long Range: LoRa). It allows for data transmission at a distance of up to 500 m using a piece of wire as an antenna. It also has u.FL connector for additional antenna. The set includes a cable adapted to Seeedstudio Base Shield v2.0.

Specification:

  • The RFM95 module based on SX1276 LoRa
  • The ATmega168 control system
  • Working voltage: 3.3 V to 5 V
  • Current consumption
    • Transmission: 28 mA
    • Standby mode: 8.4 mA
    • Reception: 20 mA
  • Work interface: UART
  • Built-in antenna + u.FL connector
  • Working frequency: 433MHz
  • Operating temperature: -20 °C to 70 °C
  • Output power: 100 mW (20 dBm)

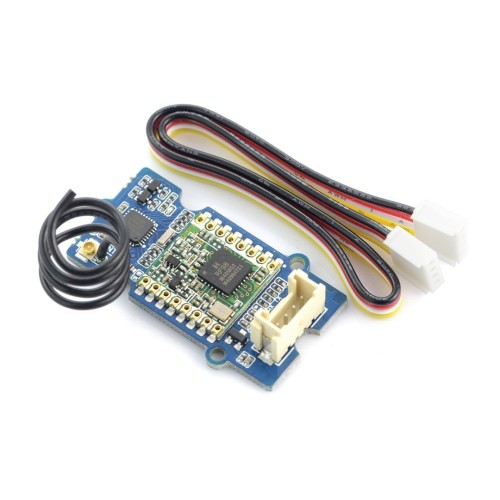

  • Connecting cable included
  • Dimensions: 40 x 20 mm

Useful links:
Manufacturer website
Manual
