HiFiBerry DAC2 Pro, sound card for Raspberry Pi 4B/3B+/3B

Brand: HiFiBerry
Product Code: AN-18129
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
71.50€
Ex Tax: 59.09€

Qty

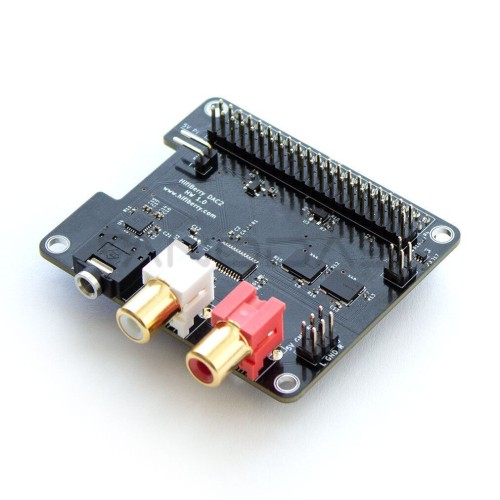

High-quality sound card with digital-analog and analog-digital converter for Raspberry Pi 4B/3B+/3B. It is equipped with a Burr-Brown 192 kHz / 24-bit converter. On the board, there are two gold-plated RCA connectors and one 3.5 mm mini-jack connector. The board can be extended with DSP. The module is mounted directly on GPIO Raspberry Pi pins.

Main features:

  • Stereo output
  • Built-in headphone amplifier
  • Possibility to expand with additional DSP
  • Burr-Brown 192 kHz / 24-bit DAC used
  • Hardware DAC volume control. Possibility to control input and output parameters using alsamixer or other applications using ALSA mixer
  • Connects directly to GPIO Raspberry Pi
  • No soldering is required, supplied as a finished product
  • Compatible with all versions of Raspberry Pi with a 40-pin GPIO connector
  • Powered directly from Raspberry Pi connectors, no additional power supply required
  • Equipped with two ultra-low noise voltage controls for higher audio quality
  • Dual-domain clock with low jitter for optimized clock performance (regardless of Raspberry Pi clock)
  • Equipped with EEPROM memory for automatic configuration
  • Gold plated RCA connectors
  • Includes all accessories needed to mount the cover
  • Audio connector to connect an analog audio amplifier

Specification:

  • Maximum output voltage: 2.1 Vrms
  • Signal-to-noise ratio: 112 dB
  • DAC THD+N: -93 dB
  • Frequency response: 10 Hz to 70 kHz (-3 dB)
  • Power consumption: up to 0.3 W
  • Sampling rate: 44.1 kHz to 192 kHz
  • Connectors: 2x gold plated RCA, 1x mini-jack 3.5 mm
  • Dimensions: 65 x 55 x 10 mm
  • Weight: 20 g
