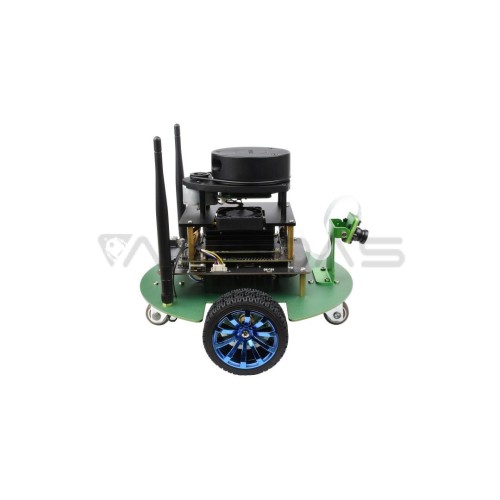

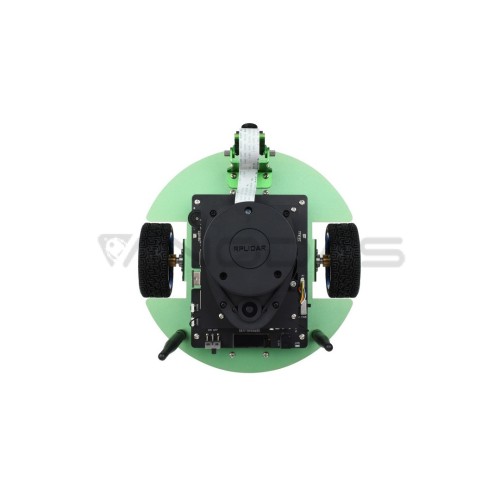

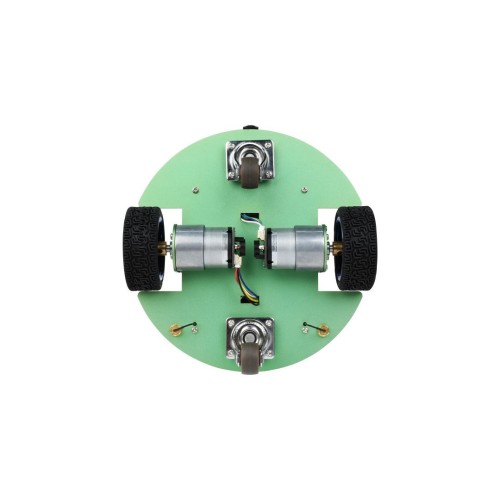

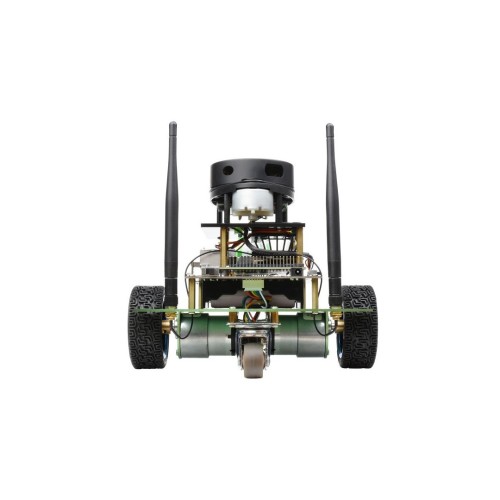

JetBot - set for building a 2-wheeled Al robot platform - full kit - Waveshare 22791

Brand: Waveshare
Product Code: AN-21871
Availability: Temporarily Out Of Stock

536.40€
Ex Tax: 443.31€

Qty

A kit for building a 2-wheel JetBot intelligent robot platform. Host controller tasks are handled by Waveshare Jetson Nano Kit, which comes with a 16 GB Jetson Nano Module eMMC version, 4 GB memory. This controller is responsible for artificial intelligence, speech processing, visual processing, mapping and navigation. Jetson Nano Developer Kit controller uses a Raspberry Pi RP2040 dual-core microcontroller, which has better real-time performance and higher control accuracy, is responsible for posture data collection and motion control. JetBot has the functions of face detection, following an object or a line. The device is able to map with the odometer and supports the mapping algorithm Gmapping, Hector, Karto and Cartographer.

Specification:

Controller: Jetson Nano Developer Kit
Microcontroller: RP2040
Intelligent speech:

Dual speakers
Dual microphones
Intelligent speech support

Sensor: IMU Sensor RPLIDAR A1
Mapping Navigation: Supported
Camera: 160° FOV wide-angle camera, 8 MP HD resolution
OLED: 0.91" 128×32px
Wireless: Yes
Wireless communication: Dual-band WiFi 2.4 GHz / 5 GHz + Bluetooth 4.2
Power supply: 3x 18650 batteries, 12.6 V
Engine: 333 rpm
Engine encoder: AB phase Hall encoder
Program library: JetBot, ROS
Skill level: Requires programming experience

Set includes:

1x JETSON-IO-BASE-A
1x Jetson Nano Module with 16 GB eMMC
1x Official Nvidia Heatsink
1x 64 GB Micro SD card
1x microSD card reader
1x aluminum housing
1x JetBot ROS housing
1x JetBot ROS expansion board
1x RPLIDAR A1
2x high-power encoders
1x acrylic piece
1x AC8265 network card with antennas
1x IMX219-160 camera
1x acrylic standoff for the camera
2x 2.54 cm wheels
1x cooling fan
2x 65 mm tires
1x wireless gamepad
1x USB adapter
1x camera mount
2x PH2.0 6PIN cables
1x 12.6 / V 2 A battery charger
2x connectors with a hole of 6 mm
4x connecting screws
1x mini cross wrench
1x nut spanner
1x Allen wrench
2x screwdriver
1x packet of screws

Tags: jetbot, set, for, building, 2-wheeled, robot, platform, full, kit, waveshare, 22791, nvidia, jetson, nano
