KEMOT PROsolar500 solar inverter

Brand: KEMOT
Product Code: URZ3416
EAN: 5901890019095
Availability: Vilnius Store Out of Stock
Kaunas Store In Stock
169.00€
Ex Tax: 139.67€

Qty

The KEMOT PROsolar-500 solar inverter with a nominal output power of 500W, thanks to its extensive functionality, allows cooperation with photovoltaic modules and the electrical network. Direct input to the solar panels makes the device use solar energy to power receivers connected to the existing electrical network. The device is also suitable for powering electrical equipment requiring 230V alternating voltage and as an emergency source it will ensure trouble-free operation of devices requiring continuous power supply, e.g. central heating pumps, or alarm and monitoring systems. The KEMOT PROsolar-500 converter has a solid casing, equipped with a bracket that allows it to be hung on the wall, e.g. in a boiler room or an electrical switchboard.

Specification:

  • Power: 500 W

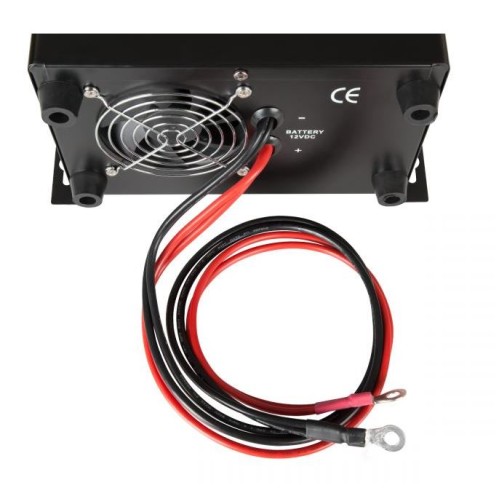

  • Battery voltage: 12 VDC
  • Working mode: PV (Photovoltaic priority) / AC (AC priority)
  • PV:

  1. Input voltage range: 12 VDC - 50 VDC
  2. Max. charge current: 20 A (in regard to connected photovoltaic cell)
  3. Max. conversion efficiency: 98%

  • AC:

  1. Input voltage range: 200 VAC ~ 275 VAC
  2. Input frequency range: 45-65 Hz
  3. Output voltage range: 215 VAC ~ 245 VAC
  4. Input PF (AC / DC): 98%
  5. Efficiency: mains mode> = 96%
  6. Charge current: 10 A

  • Inverter output:

  1. Inverter output voltage: 230 V +/- 3%
  2. Output frequency: 50 Hz / 60 Hz +/- 0.3 Hz
  3. Output power factor> = 0.8
  4. Wave form distortion: Linear load = <3%
  5. PV-AC transfer time: 4 ms typical value, max. 6 ms
  6. Efficiency: Inverter mode> = 80%
  7. Inverter overload: 110% -130% shutdown at 30 s, 130% -150% shutdown at 3 s
  8. Short circuit: System automatically shuts down

  • Ambient temperature: 0 ~ 40oC
  • Ambient humidity: 10% ~ 90%
  • Noise = <50 dB
  • Weight: 5.95 kg
  • Dimensions: 25.5x26x16 cm
