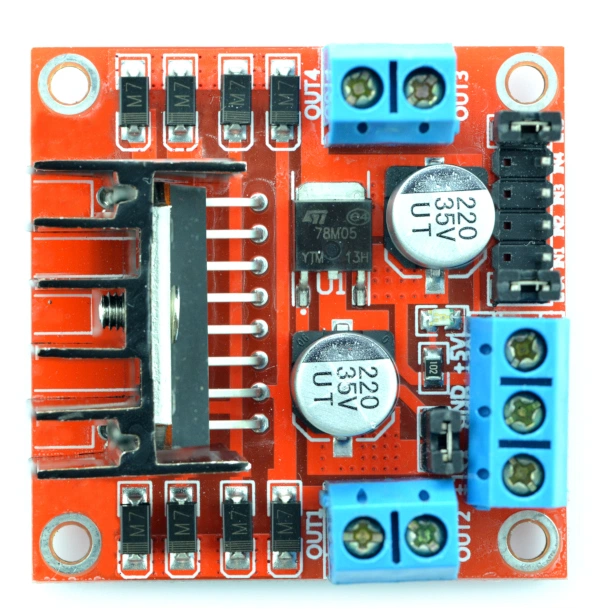

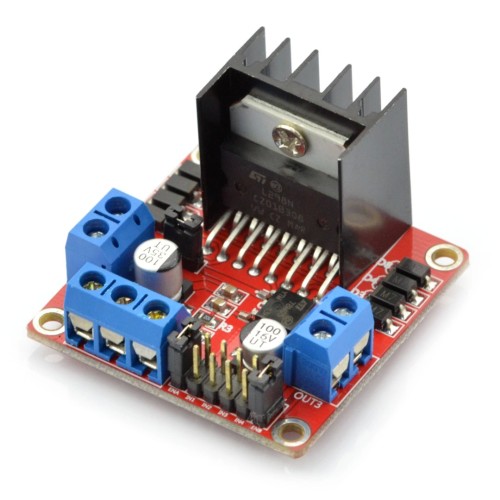

L298N - two-channel motor controller - 12V/2A module

Brand: OEM
Product Code: AN0112
Availability: Vilnius Store Out of Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
6.00€
Ex Tax: 4.96€

Qty

A module with the popular L298N controller that allows you to control the rotation direction and speed of two DC motors. Thanks to the ARK screw connectors, the power supply and the motors themselves can be easily connected by screwing the wires with a screwdriver. Control signals are output to the popular gold connectors that allow the system to be connected to development boards, e.g. Arduino using cables. L298N - Connecting the module to the Arduino should be quite easy thanks to the instructions provided online.


Specifications:

  • Supply voltage: 12V
  • Supply voltage of the logical part: 5V
  • Integrated 5V voltage regulator for powering the logical part, with the possibility of disconnecting it using a jumper
  • Maximum output current: 2A per channel
  • The module allows you to control two DC motors or one stepper motor
  • Motor outputs and power inputs are routed to the ARK screw connector
  • The input pins of the logic part are on gold pin connectors - 2.54mm pitch
  • The board contains all the passive components required for proper operation of the controller
  • A radiator is installed in the system
  • Plate dimensions: 44x44x30mm
