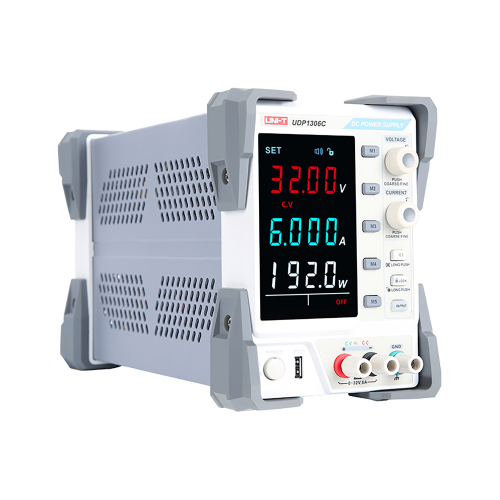

Laboratory power supply Uni-T UDP1306C

Brand: UNI-T
Product Code: MIE0412
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-04-05
312.80€
Ex Tax: 258.51€

Qty

The UDP1306C DC power supply has two groups of independen toutputs: the adjustable output of 32V/6A, which has the constant voltage (CV) and constant current (CC) modes, and the fixed output of 5V/2A with protection features of short circuit and overvoltage.

Main parameters:

  • Channel 1 / Channel 2
  • Output voltage: 0 ~ 32 V
  • Output current: 0 ~ 6 A
  • Output power: 192 W
Stabilization:
  • • Output voltage: <0.01% + 5 mV
  • • Output current: <0.1 % + 10 mA
  • Control linearity:
  • • Output voltage: <0.01% + 3 mV
  • • Output current: <0.1% + 3 mA
Resolution:
  • • Output voltage: 10 mV
  • • Output current: 1 mA
Measurement accuracy ( 25 ° C ± 5 ° C):
  • • Output voltage: <0.5% of reading + 20 mV
  • • Output current: <0.5% of reading + 10 mA
Ripple (20 Hz ~ 20 MHz):
  • • Output voltage: = <2 mV rms
  • • Output current: = <3 mA rms
  • Voltage slope delay: = <100 ms (10% of the set value)
  • Output voltage temperature coefficient: <= 300 ppm / ° C
  • Output current temperature coefficient: <= 300 ppm / ° C

General features:

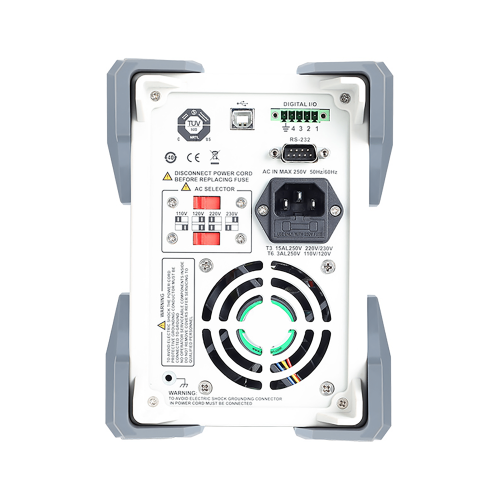

  • Ports: USB Host (5V / 2A), USB, RS-232

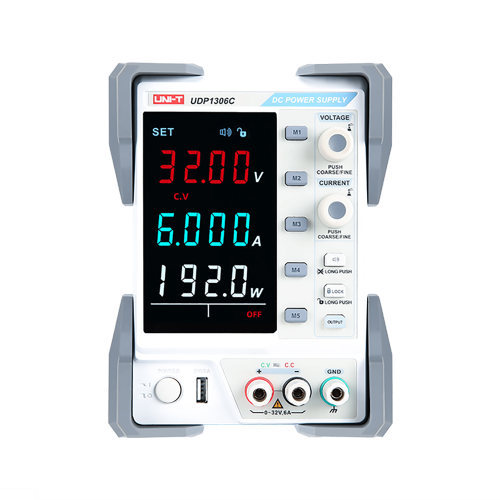

  • 3 high resolution 4-digit displays, displaying voltage and current
  • Power supply: AC 100V / 120V / 220V / 230V ± 10%, 50 Hz / 60 Hz
  • Dimensions: 136 x 194 x 327 mm
  • Weight: 7.5 kg

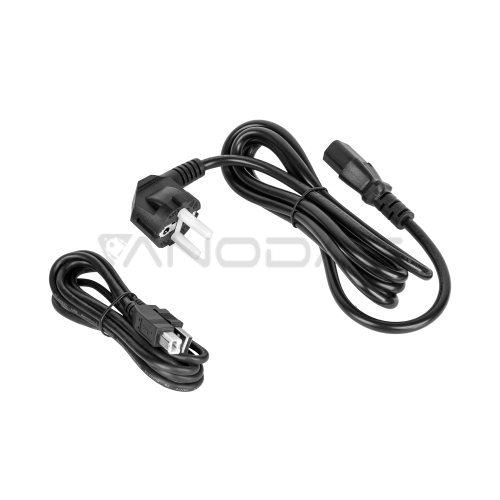

  • Accessories: Power cord, USB cable
