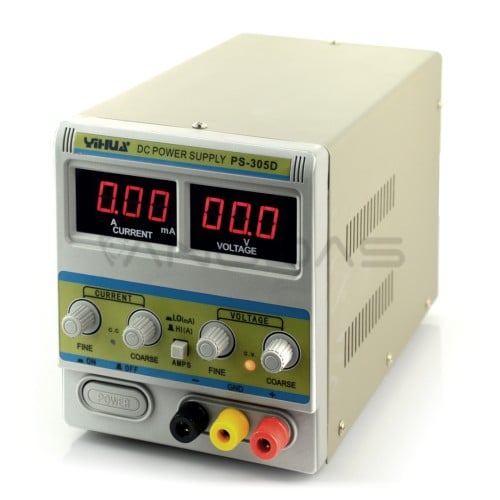

Laboratory Power Supply Yihua 305D 30V 5A

Product Code: ZAS-08878
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-29
66.60€
Ex Tax: 55.04€

Qty

Power supply PS-305D with proportional control voltage (in the range 0 - 30 V), current limit (0 - 5).


Specification:

  •     Digital display: voltage, current
  •     Setting: coarse and fine (voltage and current (limit current))
  •     Stepless voltage control
  •     The short-circuit protection
  •     Two range display current mA / A
  •     Output voltage: from 0 V to 30 V
  •     Output current: from 0 A to 5 A
  •     Accuracy: 0.1 V
  •     Voltage stability: 0,01 % +/- 2 mV
  •     The stability of the charge: 0,01 +/- 2 mV
  •     Return time of 100 µs
  •     Ripple noise: 0,5 mVrms (RMS)
  •     The power supply has high stability, reliability and low noise
  •     External dimensions: 250 x 150 x 125 mm


Included:
Laboratory power supply Yihua PS-305D
Power cable
Test leads
The user manual
Warranty 24 months
