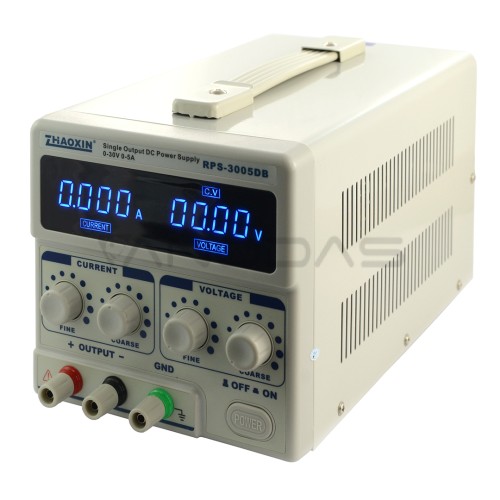

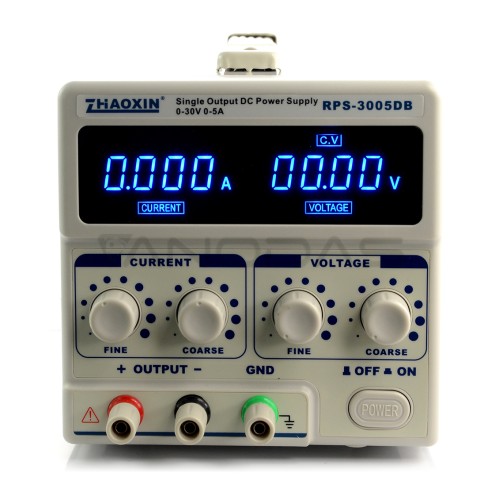

Laboratory power supply Zhaoxin RPS-3005DB 30V 5A

Product Code: LUT-08762
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-29
100.30€
Ex Tax: 82.89€

Qty

Stabilized laboratory power supply with continuously adjustable voltage in the range from 0 to 30 Volts and current range from 0 to 5 A. it Has two modes of operation: constant voltage and constant current load.


Key features:

  •     Continuously adjustable output voltage range from 0 V to 30 V
  •     Continuously adjustable output current range from 0 A to 5 A
  •     The device can operate in the following modes:
  •         Operation CV (Constant Voltage) - constant output voltage
  •         Operation CC (Constant Current) constant current load
  •     The maximum output current up to 5 A
  •     Simultaneous measurement of voltage and output current display
  •     Voltmeter: LCD display 3.5 digits with resolution of 0.01 V
  •     Ammeter: LCD, 3.5 digit, resolution 0.001 A
  •     Protection against short circuit (if a short circuit is automatically disabled)
  •     Active cooling with built in fan - continuous running
  •     The fan is connected with temperature sensor - only turns on after warming up
  •     Power supply linear transformer


Specification:

  •     Supply voltage: 230 V / 50 Hz (network)
  •     Built-in digital display
  •     Setting: coarse and fine (voltage and current current limitation)
  •     The short-circuit protection
  •     operating temperature: -10°C – 40°C
  •     Humidity: < 90 %
  •     Reading accuracy voltmeter: ± (1% + 1 digit)
  •     The precision of ammeter: ± (1% + 1 digit)
  •     The coefficient of voltage regulation CV: ≤ 0,01% + 2 mV
  •     Voltage ripple and noise voltage: ≤ 1 mVrms
  •     Current stabilization: ≤ 0,2% + 3 mA
  •     Voltage ripple and noise current: ≤ 2 mArms
  •     External dimensions: 278 x 160 x 170 mm
  •     Weight: 4.62 kg


Included:
Laboratory power supply Zhaoxin RPS-3005DB
Power cable
The user manual
