LPS25HB, pressure and altitude sensor 126kPa I2C/SPI 2.5-5.5V, Pololu 2867, soldered pins

Brand: Pololu
Product Code: AN-19263
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
18.00€
Ex Tax: 14.88€

Qty

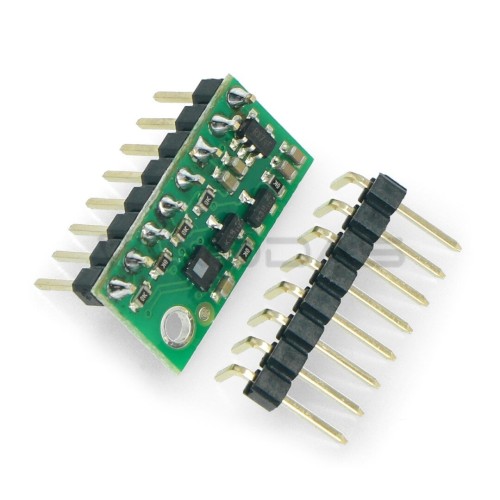

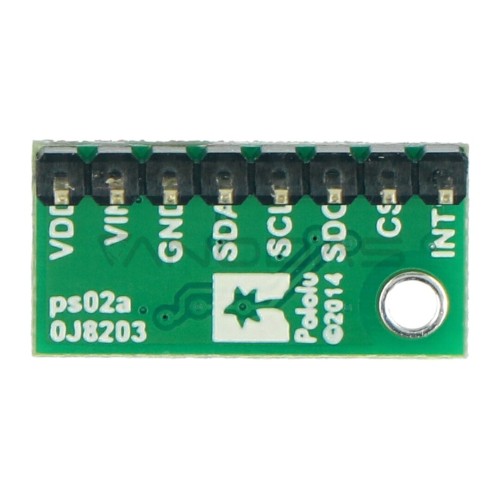

The module contains ST's LPS25H MEMS pressure sensor, which operates from 26 kPa to 126 kPa. Compared to the LPS331AP version with which it is compatible, it features higher accuracy (up to 0.02 kPa) and lower noise (0.001 kPa). It also has a built-in FIFO buffer in which measurement data can be stored before transmission. The board also includes the necessary passive components and a low-dropout voltage regulator that allows the sensor to operate with 3.3 V and 5 V systems.

Specification:
  • Supply voltage: 2.5 V to 5.5 V
  • Current consumption: 2 mA
  • Communication interface: I2C (TWI) or SPI
  • Measurement ranges: 26 kPa to 126 kPa (260 mbar to 1260 mbar)
  • Data format: 24-bits
  • Built-in FIFO buffer
  • Accuracy:
    • for temperature: 20 to 60 °C: +/- 0.02 kPa
    • for temperature: 0 to 80 °C: +/- 0.1 kPa
  • Module size: 10.2 x 23.0 x 2.54 mm
  • Weight: 0.6 g
