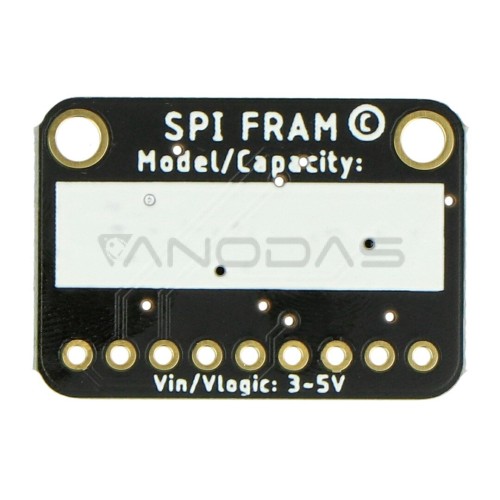

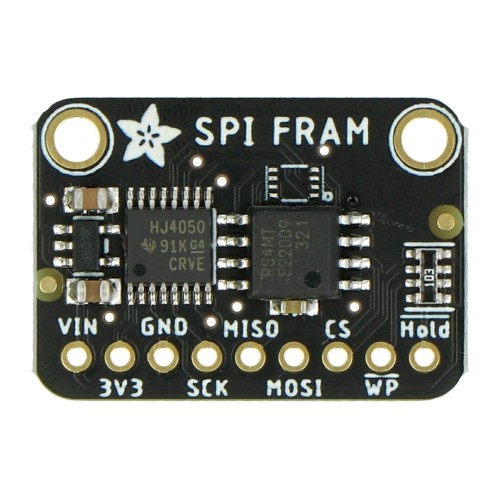

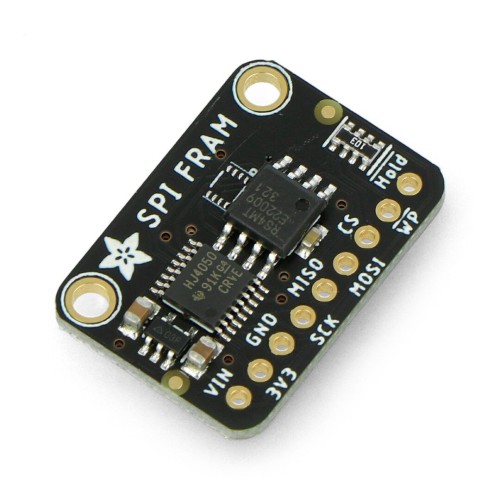

MB85RS4MT, 64Mb / 8KB FRAM non-volatile SPI memory, Adafruit 4719

Brand: Adafruit
Product Code: AN-17702
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
35.40€
Ex Tax: 29.26€

Qty

The module with non-volatile FRAM memory for data storage is characterized by low power consumption and very long durability. The data can be stored at room temperature for up to 95 years. It is ideal for data logging with low or inconsistent power consumption.
The system's capacity is 4 Mb (512 KB) and the module communicates via SPI interface with a frequency of up to 40 MHz. The outputs operate at 3 V and 5 V.

Specification:

  • Supply voltage: 3.0 V to 5.0 V
  • Output operating voltage: 3.3 V to 5.0 V
  • Integrated circuit: MB85RS4MT
  • Memory: 4 Mb (512 KB)
  • Type of memory: FRAM
  • Communication: SPI bus
  • Leads: holes for goldpin connectors - raster 2.54 mm (self-soldering strip included)

Useful links:
Manufacturer website
