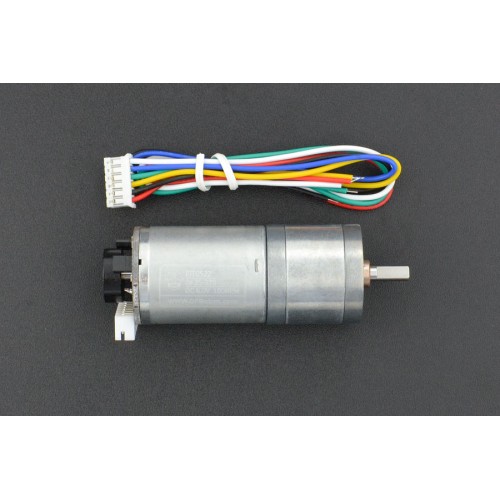

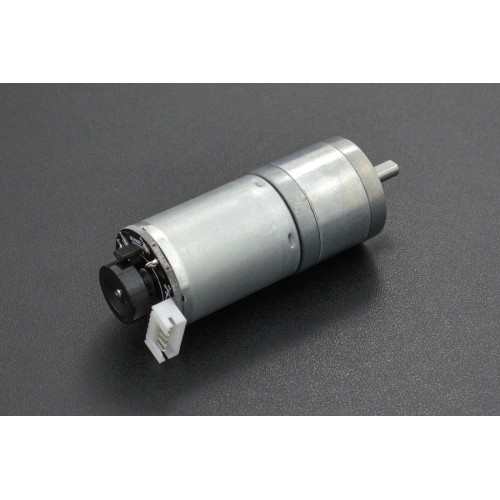

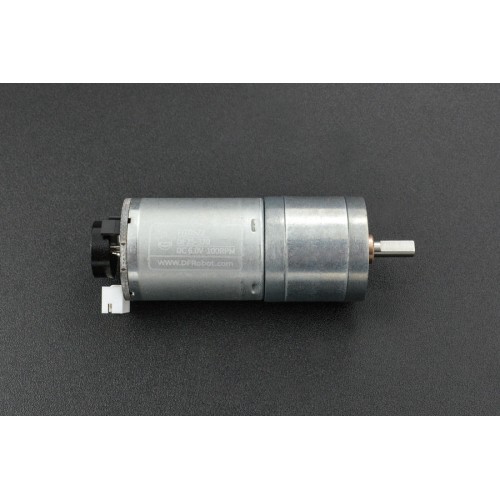

Metal DC Geared Motor 6V 300RPM + enkoder

Product Code: AN-09527
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
29.90€
Ex Tax: 24.71€

Qty

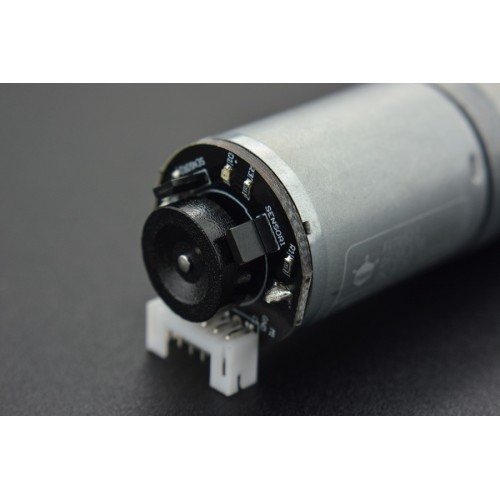

This is a metal geared DC motor w/Encoder. It is a 6V motor with a 20:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts per revolution of the motor shaft, which corresponds to 224.4 counts per revolution of the gearbox’s output shaft. Metal DC Geared Motor Pinmap

Pinmap

These units have an 8 mm length, 4 mm-diameter D-shaped output shaft. This motor is intended for use at 6V, though the motor can begin rotating at voltages as low as 1V. This motor is an ideal option for your mobile robot project.



Metal DC Geared Motor Dimension
Dimension





SPECIFICATION

Motor Rated Voltage: 6V
Encoder Rated Voltage: 3.3 / 5V
Reducer Reduction Ratio: 1: 20
No load Speed: 300RPM@0.1A
Maximum Efficiency Point: load 0.7Kg·cm / 245RPM / 1.2W / 0.4A
Maximum Power point: Load 1.8Kg·cm / 160RPM / 2W / 0.8A
Stall Torque: 3.6kg · cm
Stall Current: 2.7A
Hall Resolution: Hall Resolution 11x Precision Reduction Ratio 20.4 = 224.4PPR/ RPM
Dimension: 50 * Φ24.4 mm / 1.97 * Φ0.96inches
Weight: 96g
