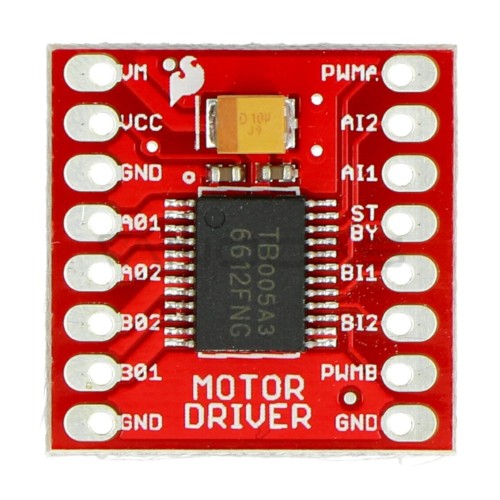

Motor Driver, Dual TB6612FNG (1A), SparkFun ROB-14451

Brand: Sparkfun
Product Code: AN-10667
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
27.20€
Ex Tax: 22.48€

Qty

Two-channel DC motor controller. The device operates on the PWM signal. The continuous current is 1.2 A (instantaneous 3.2 A). The supply voltage is 2.7 V to 15 V.

Specification:

  • Engine power supply (VMOT): 2.7 V to 15 V
  • Logic power supply (VCC): 2.7 V to 5.5 V
  • Maximum output current: 3.2 A per channel
  • Continuous output current: 1.2 A per channel
  • Maximum PWM frequency: 100 kHz
  • Built-in thermal shutdown circuit
  • Filtering capacitors on both power lines
  • Protection against backflow from motors
  • No goldpin connectors included
