Oscilloscope Hantek 6022BE USB PC 20MHz - 2 Channel

Product Code: AN-06716
Availability: 3-5 business days
Planned delivery date after ordering: 2022-10-14
116.30€
Ex Tax: 96.12€

Qty

Dual channel digital oscilloscope operating at up to 20 MHz. Device sampling rate 48MS / s. Excellent industrial design - the same anodized aluminum body as the iPad, which is not only beautiful and tasteful, but also significantly increased the hardness of the aluminum alloy surface, good heat resistance and high wear. Connects to a computer via USB. The oscilloscope has no LCD screen. The kit also comes with two probes, a USB cable and a control manual.

Technical data:

  •     Number of channels: 2
  •     Bandwidth: 20 MHz
  •     Computer connection: USB 2.0
  •     Powered by USB
  •     Sampling time: 48 MS / s
  •     Input impedance: 1 MΩ 25pF
  •     Converter Resolution: 8 bit
  •     Input sensitivity: 10 mV to 5 V
  •     Direct current accuracy: +/- 3%
  •     Maximum Input Voltage: 35 Vpp
  •     23 measurement functions:
  •     Possibility to perform mathematical waveform functions (addition, subtraction, multiplication, division, FFT analysis)
  •     Saved waveforms (text, JPG / bmp, Word, Excel, csv)
  •     LabVIEW compatible
  •     Weight: 380 g
  •     Dimensions: 205 x 120 x 35 mm

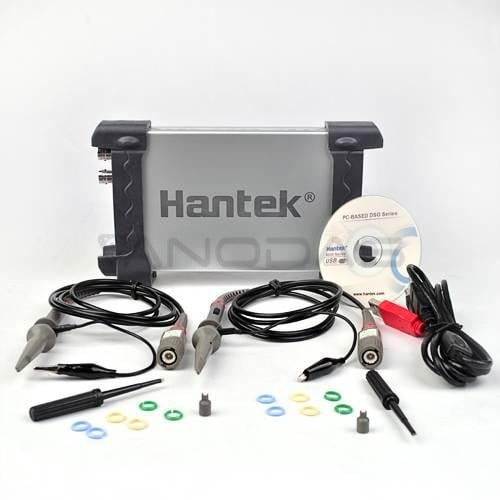

Included:
  •          Oscillograph
  •          Two measuring probes with 1x and 10x scales
  •          Users manual
  •          USB wire
  •          software
