Power over Ethernet HAT (D), PoE and 802.3af network power overlay, for Raspberry Pi 3B+/4B, Waveshare 19532

Brand: Waveshare
Product Code: AN-19593
Availability: Temporarily Out Of Stock
26.80€
Ex Tax: 22.15€

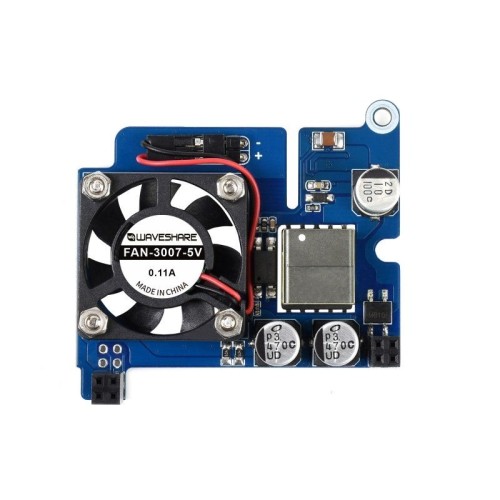

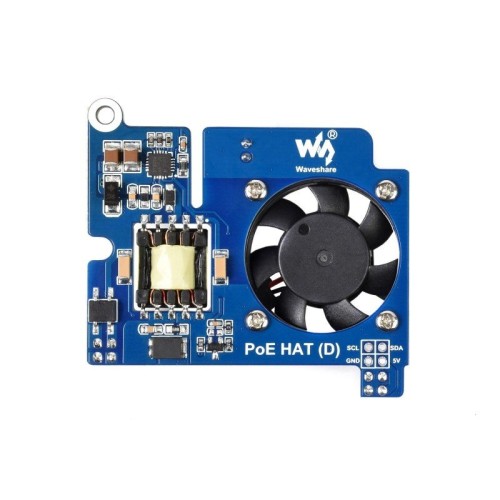

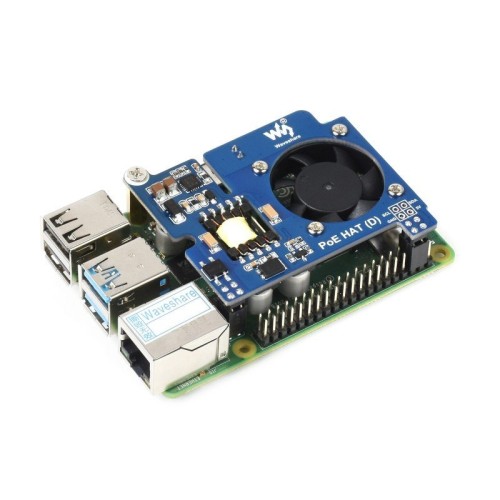

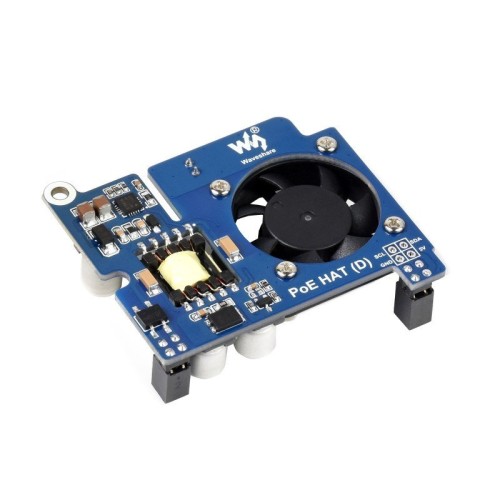

Power over Ethernet HAT (D) is an overlay module designed for Raspberry Pi minicomputer 3B+ and 4B versions. The small size and specially designed construction allow you to use it also with official Raspberry Pi cases. The Power over Ethernet HAT simultaneously provides an 802.3af network connection and supplies power to the Raspberry Pi via an Ethernet connector. The PoE input voltage ranges from 37 V to 57 V. The module is equipped with a powerful 5 V / 0.11 A fan. A PoE (Power over Ethernet) enabled router/switch is required for proper operation of the Power over Ethernet HAT.

Main features:

  • Overlay equipped with a connector compatible with Raspberry Pi GPIO pinouts
  • PoE (Power Over Ethernet) power supply overlay compliant with 802.3af standard

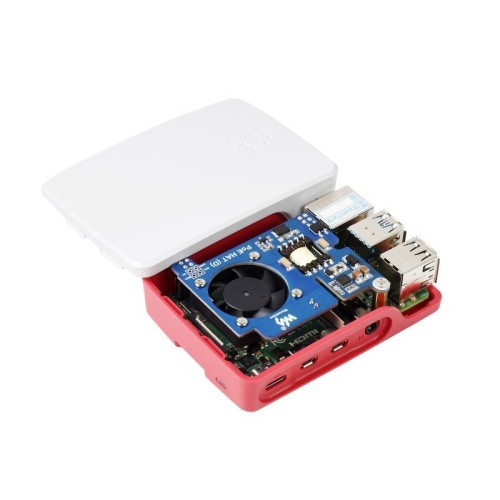

  • Compatible with official Raspberry Pi 4B enclosure and official Raspberry Pi 3B+/3B/2B enclosure
  • Fully isolated Switch Mode Power Supply (SMPS)
  • Built-in cooling fan
Specification:
  • Type: power supply module
  • Built-in chip: SI3404-A-GM
  • Compatible with Raspberry Pi version 3B+ / 4B
  • PoE power input: 37 V to 57 V DC
  • PoE power output: 5 V / 2.5 A
  • Network standard: 802.3 af PoE
  • Module dimensions: 56.5 mm x 65 mm
Set includes:
  • Power over Ethernet HAT (D) - PoE and 802.3af network overlay
  • Mounting elements:
    • spacer - x1
    • screw - x1
