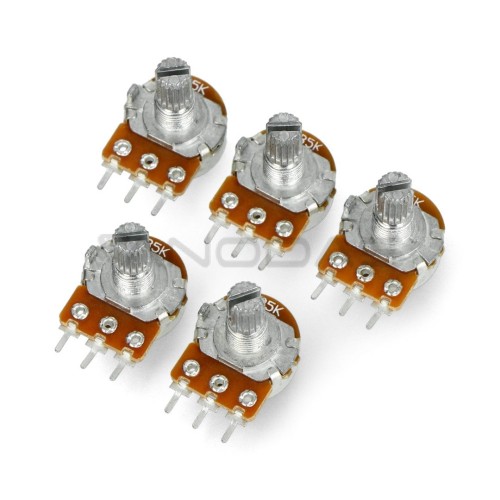

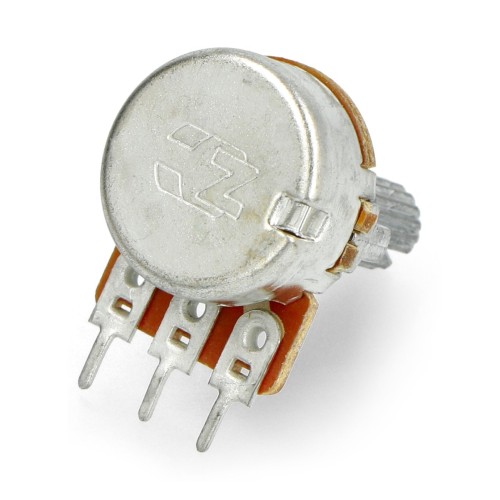

Rotary potentiometer 5kOhm linear 1/5W B5K - 5 pcs

Product Code: AN-19631
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
2.30€
Ex Tax: 1.90€

Qty

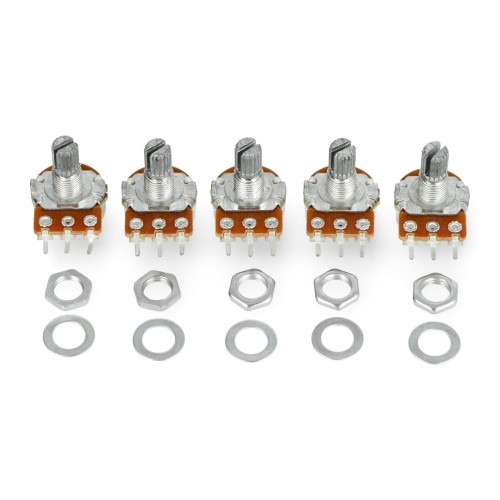

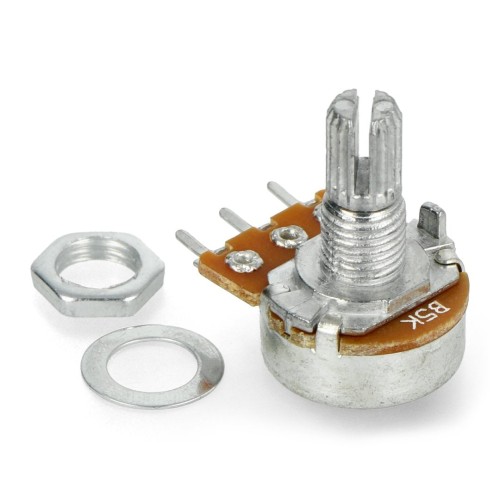

The carbon-coated linear-rotary potentiometer has three leads that match the contact plates. Connected to the microcontroller's analog-to-digital converter, it can be used as a knob-knob in the user interface. The potentiometer has a nut and washer.
Rotary potentiometer 5 kΩ linear 1/5 W is a proposal that can be used in many electronic projects. The element allows you to control the supply of electricity by increasing and decreasing the electrical resistance, so you can control the intensity of various functions of devices (for example, light or sound).

Specification:
  • Model: WH148-B5K
  • Maximum operating voltage: 200 V
  • Resistance: 5 kΩ
  • Power: 0.2 W
  • Characteristics: linear
  • Axis length: 15 mm
  • Axis diameter: 6 mm
  • Pinouts: 3 pin
  • Leads Raster: 5 mm (matched with contact boards)
  • Linearity tolerance: ± 20%
  • Working temperature: from -10 °C to 70 °C
  • Weight: 7 g
