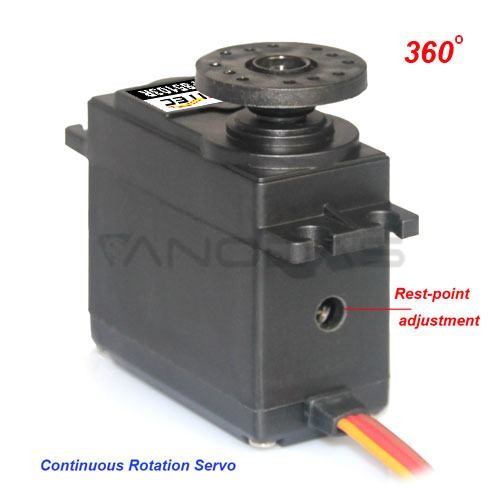

Servo Feetech FS5106R - Standard - Continuous Rotation

Product Code: FTC-09172
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-01
12.90€
Ex Tax: 10.66€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: 360 °
  • Type: analog
  • Control signal: 500 - 2500 μs
  • Connector: JR
  • Cable length: ~300mm
  • Dimensions: 40,8 x 20,1 x 38,0 mm
  • Weight: 40 g



  • 4,8 V parameters:
    • Torque: 5,0 kg*cm (0,60 Nm)
    • Speed: 0,18 s/60°

  • 6,0 V parameters:
    • Torque: 6,0 kg*cm (0,60 Nm)
    • Speed: 0,16 s/60°

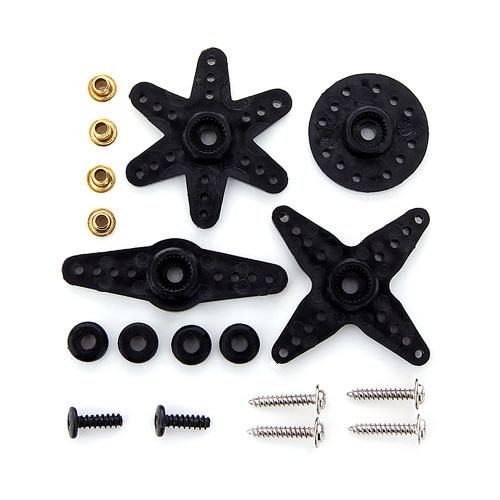

  • The kit includes servo horn set, spacers and screws.
