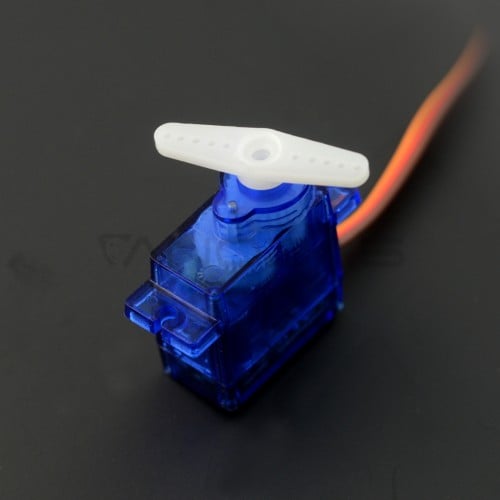

Servo Feetech FT90R - micro - Continuous Rotation

Product Code: FTC-10846
Availability: 3-5 business days
Planned delivery date after ordering: 2020-12-10
7.30€
Ex Tax: 6.03€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: 360 °
  • Type: digital
  • Control signal: 900 - 2100 µs
  • Cable length: ~250 mm
  • Dimensions: 22,9 x 12,1 x 26,5 mm
  • Weight: 9 g



  • 4,8 V parameters:
    • Torque: 1,3 kg*cm (0,13 Nm)
    • Speed: 135 RPM

  • 6,0 V parameters:
    • Torque: 1,5 kg*cm (0,15 Nm)
    • Speed: 170 RPM

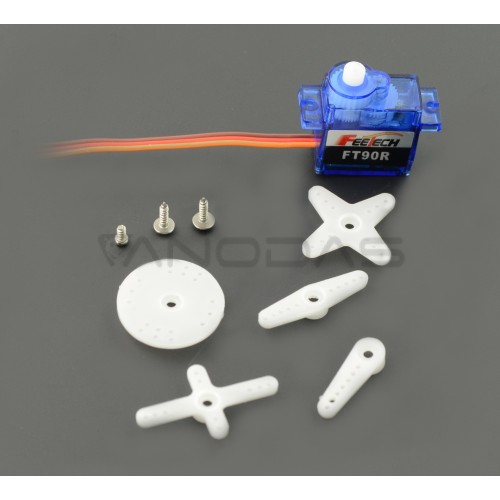

  • The kit includes servo horn set, spacers and screws.
