Soldering station 2in1 WEP 853DA with Hotair 800W

Product Code: LUT-02322
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-22
97.50€
Ex Tax: 80.58€

Qty

Station 853DA is the combination of hot air iron, tip-based soldering iron and power supply 15V/1A. The device has a smooth adjustment of power and temperature of the airflow and temperature adjustment of the tip with the buttons. The parameters are displayed on LED displays. The station is controlled with a microcontroller, it has a cooling system of the heater before shutting down and remembers the set temperature. It allows reading the real temperature of the hot air. All of the five modules can work independently.


Specification:

  •     Supply voltage: 230 V / 50 Hz (network)
  •     Power consumption: 800 W
  •     The station is controlled through a microcontroller that provides high stability
  •     The station has read the real temperature value of hot air
  •     Compact design with LED displays
  •     Dimensions: 185 x 175 x 25 mm
  •     The weight: 4.2 kg


Soldering Iron Hotair:

  •         Blowing air through the compressor inside the station
  •         Adjustable temperature hot air in the range: 100 to 480 °C
  •         Temperature stability: +/-1 °C
  •         Temperature setting buttons,
  •         Maximum air capacity up to 24 litres/minute
  •         The real temperature value of hot air
  •         Adjustable air supply with regulator



Soldering Iron Tip-based:

  •         Adjustable temperature soldering tip: 200 °C to 480 °C
  •         Temperature stability: +/- 2 °C
  •         Soldering iron power: 50 W
  •         The resistance to grounding: up to 2 Ω
  •         Potential relative to ground: 2 m


 Power supply:

  •         Output voltage: DC 0 - 15V
  •         Maximum current: 1 A
  •         Digital LED display

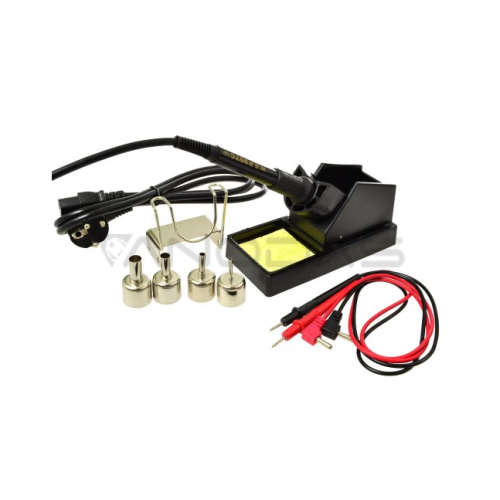

Includes:
Station WEP 853DA
Stand for the hotair iron

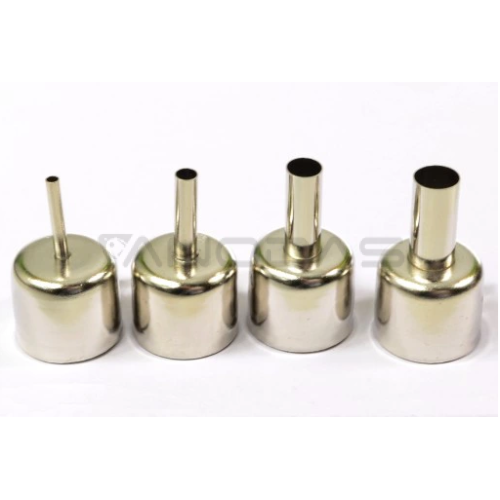

Set of nozzles:
        round 2.5 mm
        round with a diameter of 4.4 mm
        round with a diameter of 7 mm
        round with a diameter of 9 mm
Stand for a tip-based iron along with a cleaning sponge
Soldering iron with a T-I tip
A gripper for lifting circuits
Power cable
