Soldering station 2in1 WEP 992D+ with Hotair 700W

Product Code: LUT-06545
Availability: 3-5 business days
Planned delivery date after ordering: 2020-11-05
125.50€
Ex Tax: 103.72€

Qty

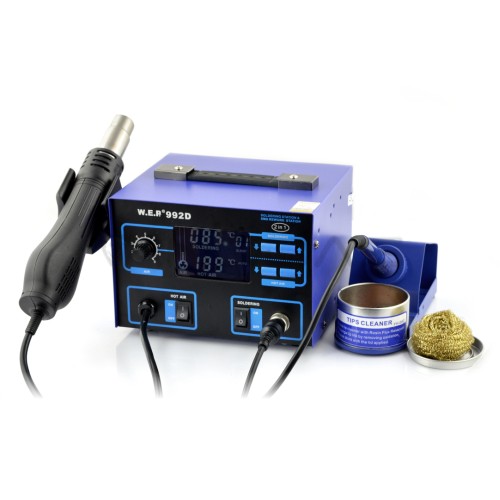

WEP 992D soldering station with hot air iron and tip-based soldering iron with a capacity of 75 W, used for soldering and desoldering of electronic components. The device is equipped with a PID microcontroller unit, which checks the performance and adjusts it to the preset values. The air flow is realized through the fan in the iron. The operation of the hot air in automatic and manual mode: automatic - when you put down the iron, the system will turn off the heat and cool down the iron to a safe temperature, manual - when you put down the iron, the system further heats a heating element. Before finishing, it is recommend you go to auto mode. The function of temperature correction depending on external parameters. Mode C/F the ability to change the units in which temperature is displayed. Sleep function of soldering iron - if the iron is not used the given time interval (0 - 99 minutes) the system switches to sleep mode, that is cooled to a temperature of 200 °C, which ensures long service life of the device.

Specification

  •     Voltage: 220 - 240 V / 50 Hz (network)
  •     Power consumption: 700 W
  •     The station is controlled through a microcontroller that provides high stability
  •     The device has a PID controller
  •     Compact design with large and clear LCD display


  Soldering Iron Hotair:

  •         The flow of air through the fan in the iron
  •         Air flow: up to 120 l/min
  •         Smooth adjustment of temperature in the range
  •         Adjustable temperature hot air from 100 °C to 480 °C
  •         Temperature stability: +/-1 °C
  •         LCD display showing actual power supply
  •         Operation mode manual / automatic
  •         Protection before reaching the high temperature and inform the alarm
  •         Cable length of the iron: up to 90 cm

 Soldering Iron Tip-based

  •         Adjustment of the soldering tip temperature: 100 °C-480 °C
  •         Temperature stability: +/- 1 °C
  •         Peak power soldering iron: from 72 to 75 W
  •         The resistance to grounding: up to 2 Ω
  •         Capacity in relation to protective earth: up to 2 mV
  •         The system is ESD safe
  •         Cable length of the iron: up to 120 cm
  •         Sleep mode: enabled after idle operation 0-99 minutes


 Includes:
Station WEP 992D
Stand for hotair iron
Set of nozzles:
        round with a diameter of 4.4 mm
        round with a diameter of 7 mm
        round with a diameter of 9 mm
        square 12x12 mm
Stand for the soldering iron with a cleaning sponge
Soldering iron 907I with T-I tip
A gripper for lifting circuits
Power cable
