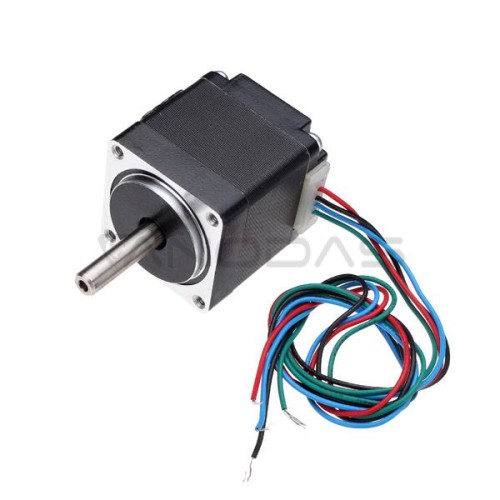

Stepper motor JK28HS32-0674 200 steps/rev 3.8V / 0.67A / 0.06Nm

Product Code: MOT-03604
Availability: 3-5 business days
Planned delivery date after ordering: 2020-12-10
18.80€
Ex Tax: 15.54€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed

Specification:

  • Steps per revolution: 200 (1,8 °)
  • Voltage rating: 3,8 V
  • Current rating: 670 mA
  • Resistance: 5,6 Ω per coil
  • Inductance: 3,4 mH
  • Torque: 0,6 kg*cm (0,058 Nm)
  • Bipolar (4 wires)
  • Shaft diameter: 5 mm
  • Weight: 110 g
  • Standard: NEMA 11
  • Size: 28 x 28 x 32 mm

Stepper motors are used in:

  • 3D printer
  • CNC machines
  • Laser cutters
  • Manipulators
