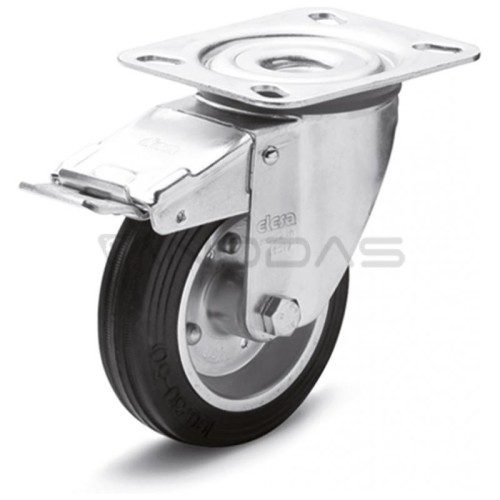

The RE.E3-150-SBF-N wheel set is a durable and long-lasting product that has been designed for transport and moving heavy objects. It is equipped with a swivel housing with a mounting plate and a lock that allows easy assembly and disassembly. The wheel diameter is 150 mm and the wheel load capacity is 170 kg. The mounting plate has dimensions of 85x100 mm. The set consists of two galvanized steel discs connected with rivets. The wheel tread is made of NBR vulcanized rubber with a hardness of 83 Shore A. The wheel bearing is provided by a polyamide-based (PA) technopolymer. The RE.E3-150-SBF-N castor is ideal for dolly applications, dollies, pallets, racks and other transportation equipment. Its durable construction and durable materials make it an extremely durable and reliable product.

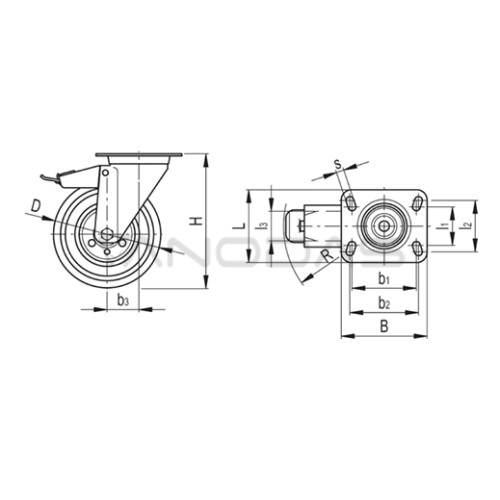

l%2%: 60
b2: 80
l1: 45
L: 85
b3: 37
B: 100
b%1%: 75
R: 120
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 1700
Rolling load capacity #[N]: 1000
Hub: two galvanized steel discs connected with rivets
Tread: NBR vulcanized rubber
Tread hardness: 83 Shore A
Wheel diameter (D): 150
Tread width (l3): 40
Set height (H): 182
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 170
Brake: yes
Wheel bearing: plain bearing made of polyamide-based technopolymer (PA)

Tags: swivel, wheel, 150mm, rubber, with, brake, mounting, plate, load, capacity, 170, re.e3-150-sbf-n, mx-re-e3-150-sbf-n, elesa+ganter
