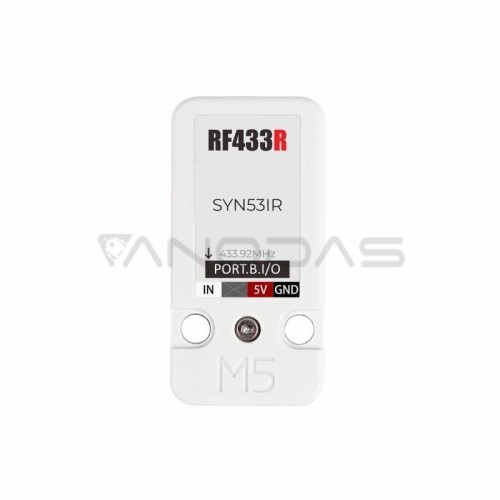

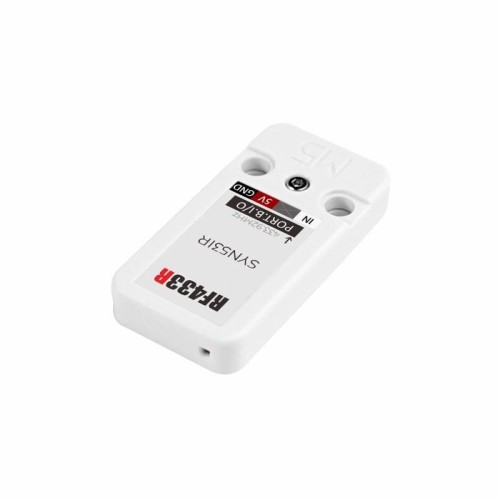

SYN513R RF Receiver - 433 MHz - expansion module Unit for M5Stack Development Modules

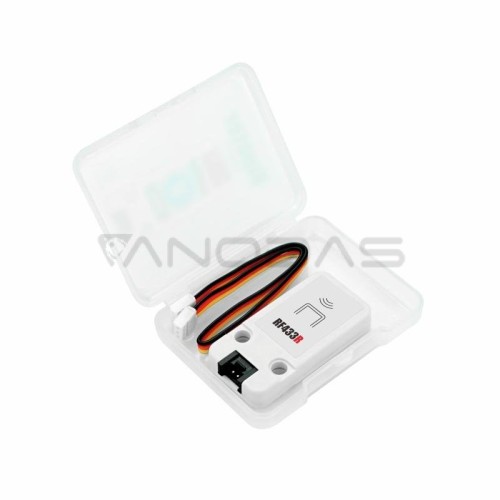

Unit type expansion in the form of an RF receiver from M5Stack. The RF433R module is a wireless RF receiver featuring the SYN531R chip, which has an operating frequency of 433.92 MHz (with ASK modulation). This frequency is commonly used in various types of wireless controllers. The module has also a built-in PCB antenna, which ensures stable reception at distances up to 10 m. It features excellent selectivity and effective noise suppression. Thanks to its robust and compact design, including practical mounting holes, the RF receiver can be used in projects with remote control, security alarms or wireless meter reading. The kit's components are packed in a convenient carrying case for easy storage.

Specification:

• Embedded Receiver IC: SYN531R
• Frequency: 433.92 MHz (with ASK modulation)
• Stable reception distance: up to 10 m
• Sensitivity: -109 dBm
• Reception speed: 1 kbps
• Operating current: 8 mA
• Excellent selectivity and noise suppression
• Antenna type: PCB
• Equipped with two holes compatible with LEGO standard
• Module dimensions: 48 x 24 x 8 mm
• Weight: 6 g

Set includes:

• SYN513R RF Receiver - 433 MHz
• Connection cable with Grove connector
