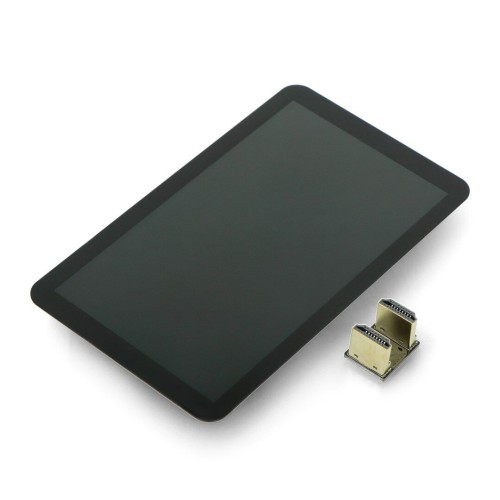

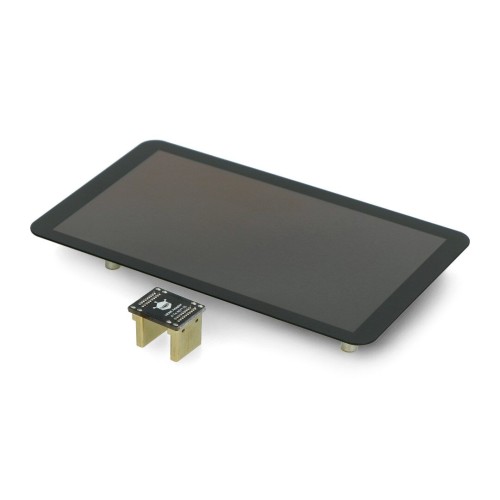

Touch display OLED 5.5'' 1920 x 1080 px HDMI + USB, compatible with Raspberry Pi 4B and LattePanda Alpha / Delta, DFRobot DFR0524

Brand: Dfrobot
Product Code: AN-17437
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-08

142.50€
Ex Tax: 117.77€

Qty

Add to Wish List

The 5.5" HDMI OLED display has a capacitive V2.0 touch screen. A high resolution of 1920 x 1080 px and multi-touch with the possibility of defining 10 touch points at the same time ensure high comfort of use. No additional drivers need to be installed, just plug it in using USB. The screen is supported by two operating systems: Windows and Linux. It works with Lattepanda, RaspberryPi, and devices with HDMI output. The screen has special mounting holes, which are compatible with Raspberry Pi. Thanks to them it is possible to mount the display directly to the controller.

Specification:

Working voltage: 5 V
The working current: 700 mA
Resolution: 1080 x 1920 px
Touch/power interface: micro USB
Interface: HDMI
Support for 10 touchpoints, multi-touch
Display area: 68.3 mm x 121.42 mm
Outline area: 124 mm x 71 mm
Mounting hole size: M2,5
External mounting hole: 95 mm x 64 mm
Internal mounting hole: 58 mm x 49 mm (compatible with Raspberry Pi)

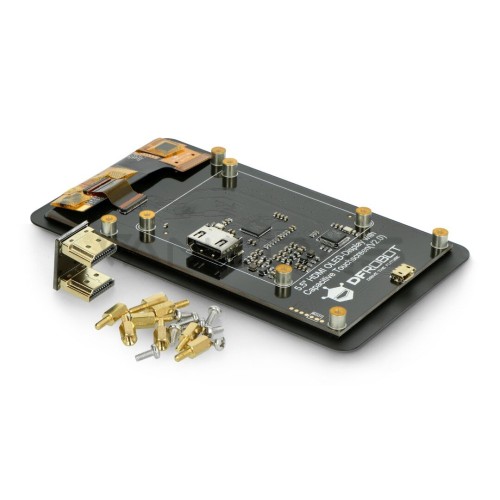

Set includes:

Raspberry Pi HDMI adapter
Distance M2.5 x 8 - 8 pcs.
Mounting screws M2.5 x 6 DK4.9 - 8 pcs.

Useful links:
The website of the manufacturer
Manual

Tags: touch, display, oled, 5.5, 1920, 1080, hdmi, usb, compatible, with, raspberry, and, lattepanda, alpha, delta, dfrobot, dfr0524, electronics
