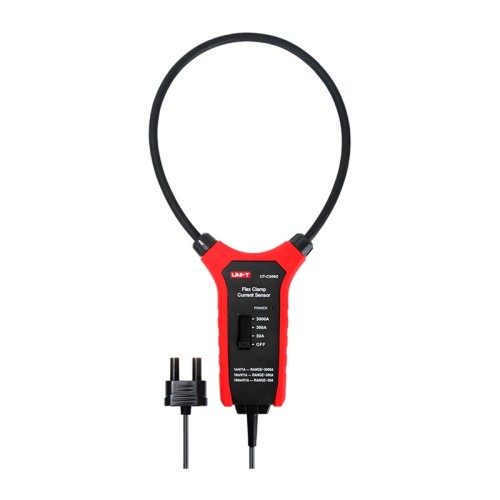

Uni-T Flex Clamp UT-CS09D Sensor

The Uni-T Flex Clamp UT-CS09D is a flexible current sensor based on a Rogowski coil, designed for measurements in confined spaces. Thanks to its flex clamp design, it allows for convenient clamping of wires even where traditional clamp meters cannot reach. The measurement range up to 3000A enables work with high-current installations, making this model well-suited for professional applications.

Accurate measurement and ease of use

The device ensures stable and safe measurements across a wide frequency range, and the flexible 45.7 cm measurement lead makes it easy to adapt to various installations. When connected to compatible Uni-T meter models (e.g., UT206B or UT208B), the current reading is displayed directly on the screen, simplifying the workflow. Its robust construction, resistance to drops from a height of 1 meter, and high CAT IV 600V safety rating ensure reliable use in demanding conditions.

Included

Sensor
Batteries x3
BNC adapter
User manual

Specifications

Manufacturer	Uni-T
Model	UT-CS09D
Type	Flexible current sensor (Rogowski)
AC current measurement range	30A / 300A / 3000A
Frequency response	45Hz – 500Hz
Clamp length	45.7 cm
Safety category	CAT IV 600V
Drop resistance	1 m
Operating temperature	0°C – 50°C
Storage temperature	-20°C – 60°C
Storage humidity	≤80% RH
Power supply	3 × 1.5V battery (R03)
Dimensions	267 × 119.4 × 34 mm
Weight	260 g
Certifications	CE, UKCA, cETLus
