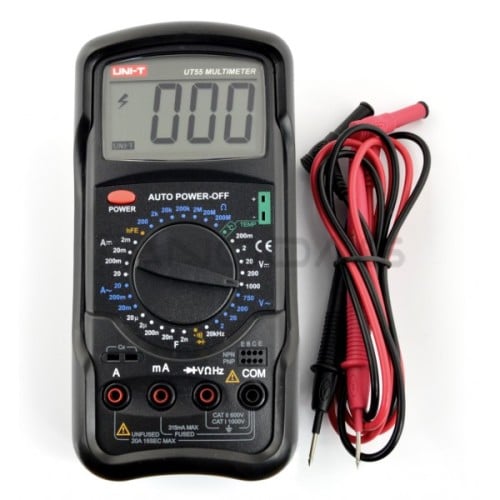

Universal multimeter UNI-T UT55

Brand: UNI-T
Product Code: UPM-01119
EAN: 5901436740711
Availability: Vilnius Store In Stock
Kaunas Store In Stock
28.40€
Ex Tax: 23.47€

Qty

The multimeter allows you to measure DC and AC voltages, DC and AC flow, resistance, capacitance and frequency. The attached probe can measure the temperature in the range of -20 ÷ 1000 ° C. Continuity is indicated by an audible signal. The device has a transistor test function and an automatic shut-off after 30 minutes. The multimeter is powered by the popular 9V battery, which is also included, and its discharge level is indicated by a digital indicator. The large, easy-to-read display and attached cord make it easy to use the multimeter.

Specifications:

  • DC voltage: DC 200 mV / 2 V / 20 V / 200 V / 1000 V DC
  • AC voltage 2 V / 20 V / 200 V / 750 V
  • DC current 2 mA / 20 mA / 200 mA / 20 A
  • AC current 200 mA / 20 A
  • Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ
  • Capacity 2 nF / 20 nF / 200 nF / 2 µF / 20 µF
  • Frequency from 20 kHz – 10 Hz
  • Temperature range from -20 ° C to 1000 ° C
  • Louder
  • Transistor Tester
  • Diode Tester
  • Battery indicator
  • LCD Display 1999 (33 x 65mm)
  • Dimensions 190 x 88 x 34 mm
  • Power supply 9 V battery (included)
  • Weight 850g


Included:

  • Test leads
  • Temperature probe
  • 9V battery
  • leash
  • Instructions: Polish and. English
  • Warranty: 24 months
