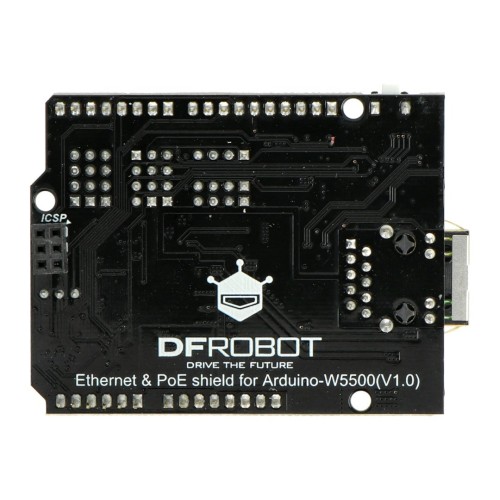

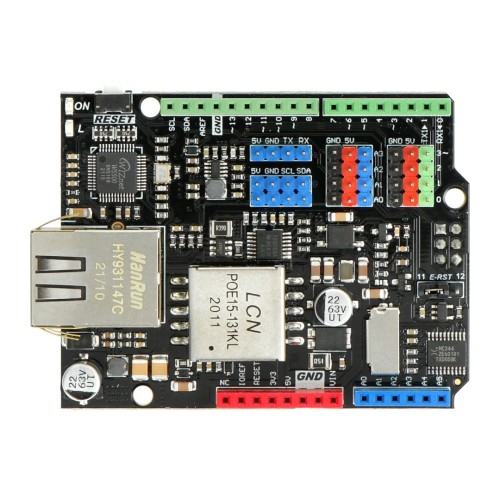

W5500 - Ethernet and PoE Shield for Arduino - DFRobot DFR0850

• TCP / IP protocol support: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• WOL Wake-on-LAN support
• Ethernet Controller: W5500 with 32 kB buffer
• The built-in level converter circuit
• PoE module allows power over Ethernet - works only with PoE capable routers/switches
• Suggested application:
• security system: network camera
• home monitoring
• USB Ethernet: storage devices, network printers
• the set-top box, PVR, digital media center

• Type: Arduino expansion board
• Type: communication overlay
• Communication type: Ethernet and PoE
• PoE input: 48 V AC/DC
• PoE power: up to 12 W (VIN port can output 12 V / 1 A)
• PoE class: 0 PD
• PoE Standard: 802.3at
• Communication interface: SPI bus
• SPI Clock: 80 MHz maximum
• Ethernet controller: W5500 with 32 kB buffer
• Supported TCP / IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• Built-in RJ45 connector
• Slot for microSD memory card
• Overlay dimensions:
• boards: 68.6 x 53.3 mm
• boards and Ethernet connectors: 72.5 x 53.3 mm

• W5500 - Ethernet and PoE Shield for Arduino - 1 pcs
• 2.54 mm jumper - 1 pcs
